M80-5301022

Headers, Male Pins Overview

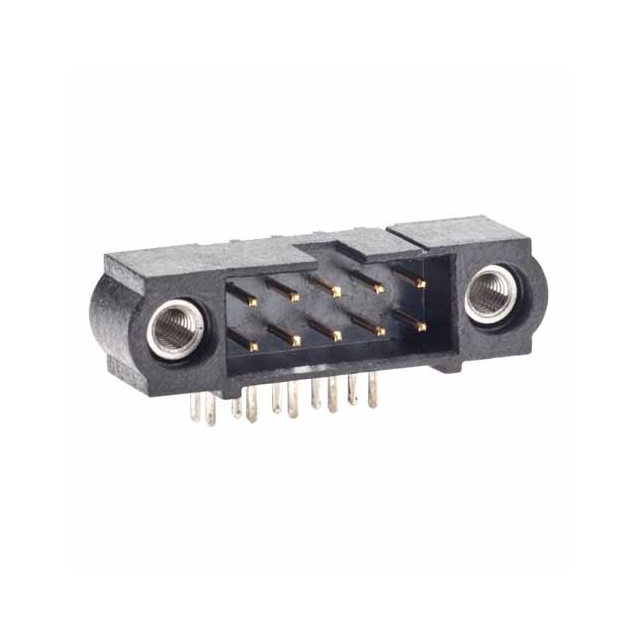

The M80-5301022 is a Datamate J-Tek series connector header manufactured by Harwin Inc. It features a male pin configuration with 10 positions arranged in a dual inline layout (DIL). The component utilizes a 2 mm pitch and is designed for right-angle through-hole mounting. Electrical specifications include a current rating of 3 A and a voltage rating of 120 V. The contacts are constructed from phosphor bronze with gold plating, while the housing is made of black polyphenylene sulfide (PPS). The operating temperature range spans from -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity under vibration and shock.
• Shrouded design provides polarized keying to prevent misalignment during mating.
• Robust PPS housing material offers durability in harsh environments.
• Jackscrew locking mechanism secures the connection against accidental disengagement.

Headers, Male Pins Applications

• Automotive electronics systems
• Military and defense equipment
• General industrial control applications

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the M80-5301022 to confirm RoHS compliance status and detailed packaging quantities. Ensure that the right-angle orientation matches the PCB layout requirements. Cross-reference the official Harwin ordering suffixes to confirm the exact termination and jack screw type before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle power-to-board connection is required. The 2 mm pitch allows for compact board designs while maintaining robust mechanical locking via jackscrews. Consider the 3 A current rating and 120 V voltage limits to ensure compatibility with the target circuit's electrical demands and environmental conditions.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family within the broader M80 connector system. The J-Tek variant specifically integrates jackscrew locking for enhanced security compared to standard latching versions. It is categorized under power connectors and headers, serving as a male pin header for mating with corresponding female receptacles in critical infrastructure.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating receptacles if considering alternative suppliers or variants within the same series.
