M80-5301042

Headers, Male Pins Overview

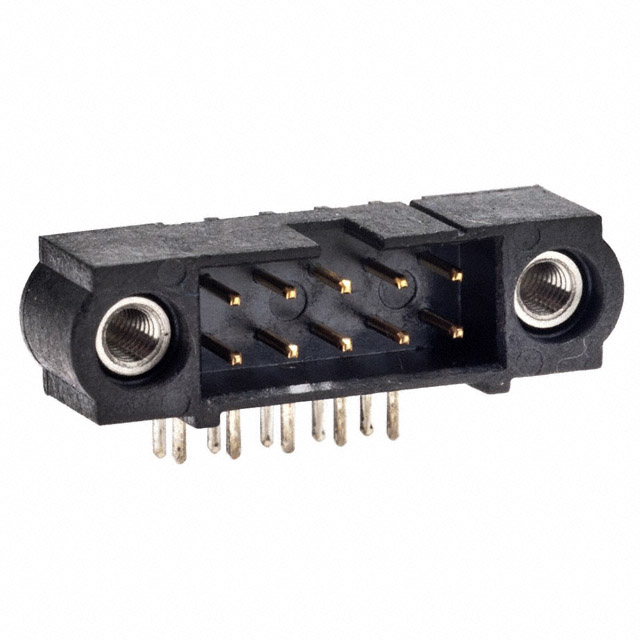

The M80-5301042 is a Datamate J-Tek series board connector manufactured by Harwin Inc. It is a male plug header with 10 positions arranged in a dual row (5+5). The connector utilizes a 2.00mm pitch and is designed for right-angle through-hole mounting on printed circuit boards. It features internally threaded jackscrews for secure mating and includes a 3mm PCB termination tail. The contacts are constructed from beryllium copper with gold plating, while the insulator is black polyphenylene sulfide.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for horizontal PCB integration
• Integrated internally threaded jackscrew locking mechanism
• Dual-row configuration with mixed contact options available

Headers, Male Pins Applications

• Wire-to-board interconnections
• High-reliability industrial systems
• Military and aerospace electronics

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm pin count, row configuration, and termination style. Ensure the selected variant matches the required jack screw hardware type and insulation material specifications for the target application environment.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust strain relief via jackscrews. Consider the right-angle form factor for space-constrained layouts. Verify compatibility with mating receptacles regarding pitch and row alignment before procurement.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability performance in harsh environments. The series offers various housing materials and contact configurations to support diverse electronic assembly requirements across multiple industries.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80 series headers with matching 2.00mm pitch and 10-position dual-row layout. Ensure mechanical dimensions and jackscrew thread standards align with existing assembly tooling.
