M80-5301242

Headers, Male Pins Overview

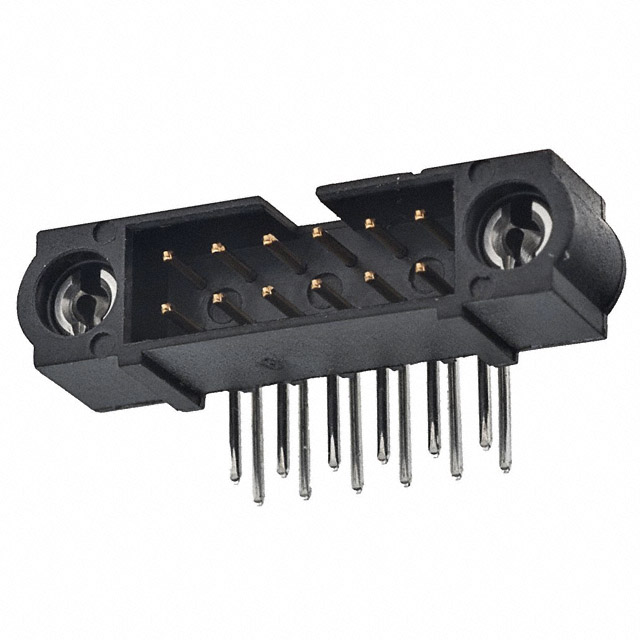

The M80-5301242 is a Datamate J-Tek series board connector manufactured by Harwin Inc. It features a dual-row, right-angle male header configuration with twelve contacts arranged in a 6+2 layout. The component utilizes a 2 mm pitch and is designed for through-hole mounting on printed circuit boards. Electrical specifications include a current rating of 3 A and an operating temperature range from -55°C to +125°C. The housing is constructed from black polyphenylene sulfide (PPS), while the contacts are made of phosphor bronze with gold plating.

Headers, Male Pins Feature Summary

• Right-angle male header design for space-constrained PCB layouts
• Integrated internally threaded jackscrews for secure mating
• High-reliability construction suitable for mission-critical applications

Headers, Male Pins Applications

• Industrial control systems
• Aerospace and avionics equipment
• Military defense electronics
• Medical instrumentation devices

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact count, row configuration, and termination style. Ensure compatibility with mating female connectors within the same Datamate J-Tek family. Confirm RoHS compliance status if required by project specifications. Check manufacturer lifecycle status as components may be discontinued or subject to obsolescence notices.

Headers, Male Pins Selection Notes

Select this part for applications requiring robust mechanical retention via jackscrews. The right-angle orientation facilitates compact board stacking. Verify that the 2 mm pitch aligns with existing footprint designs. Consider the 3 A current rating against thermal management requirements. Ensure the through-hole termination method matches the target PCB manufacturing capabilities.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek product line, known for high reliability in harsh environments. The series offers various configurations including straight and right-angle headers. The M80-5301242 specifically addresses needs for secure, vibration-resistant connections in professional electronic assemblies where standard snap-fit connectors may lack sufficient holding force.

Headers, Male Pins Replacement Considerations

M80-5L10622M1-00-000-00-000 is listed as an alias for this part number.
