M80-5301422

$13.21

Description：CONN HEADER R/A 14POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:962049d98c48 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

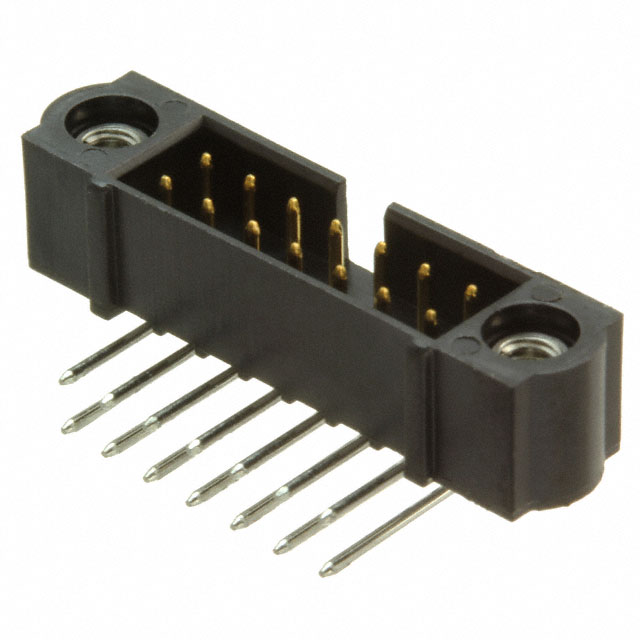

M80-5301422 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5301422

Description：CONN HEADER R/A 14POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5301422

M80-5301422

Headers, Male Pins Overview

The M80-5301422 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 14-position (7+7) configuration with a 2 mm pitch and two rows. Designed for through-hole mounting, it utilizes right-angle solder pin termination. The housing is constructed from black Polyphenylene Sulfide (PPS), while contacts are made of phosphor bronze with gold plating. It supports wire-to-board and board-to-board connections within an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

High-reliability secure interconnect system designed for demanding applications
Robust right-angle through-hole construction for stable PCB integration
Gold-plated phosphor bronze contacts ensure durable electrical performance

Headers, Male Pins Applications

Wire-to-board interconnections in industrial equipment
Board-to-board signal transmission in high-reliability systems
Power distribution modules requiring robust mechanical locking

Headers, Male Pins Procurement Notes

Verify the specific suffix '22' indicates tin/lead solder finish compatibility if leaded processes are required. Confirm right-angle orientation matches the target PCB layout. Ensure mating connectors belong to the same Datamate J-Tek series to guarantee correct pitch and locking mechanism engagement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, through-hole male header is necessary for 2mm pitch applications. It is suitable for environments requiring operation between -55°C and +125°C. Consider the 3A current rating and 120V voltage limit against circuit requirements before implementation.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability performance. It complements other J-Tek headers like M80-5401442 but differs in terminal style and angle. It pairs with female sockets to form complete interconnect solutions for power and signal routing.
