M80-5301442

Headers, Male Pins Overview

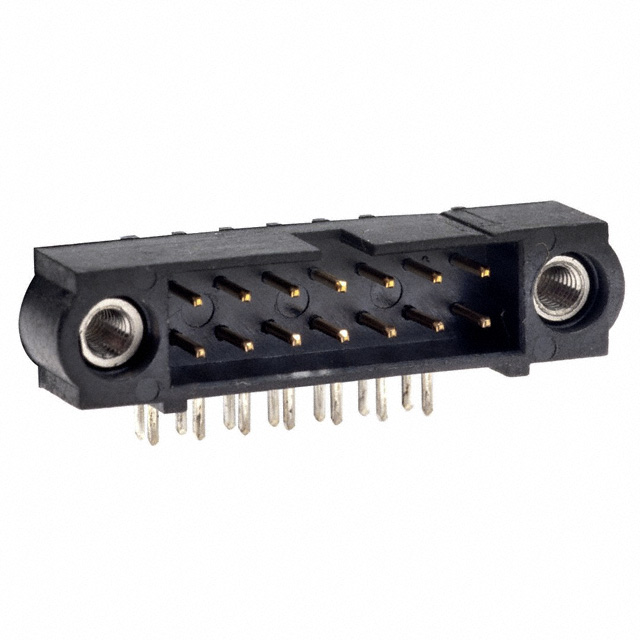

The M80-5301442 is a Datamate J-Tek series header connector manufactured by Harwin Inc. It features 14 positions in a dual-row configuration with a 2 mm pitch. Designed for through-hole mounting, the male pins are gold-plated phosphor bronze contacts housed in black polyphenylene sulfide (PPS). The component supports a current rating of 3 A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Dual-row shrouded design ensures correct mating alignment and prevents pin damage during insertion.
• Gold-plated contacts provide reliable electrical performance and corrosion resistance in demanding environments.
• Polyphenylene sulfide housing offers high thermal stability and meets UL94 V-0 flammability ratings.

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Automotive electronics modules operating under high thermal stress
• Military communication equipment needing secure signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact contact plating thickness and housing material variations. Ensure that the selected variant matches the required PCB hole dimensions and soldering profile specifications for reliable assembly.

Headers, Male Pins Selection Notes

Select this connector when a 14-position dual-row male header is required for through-hole applications. Confirm that the 2 mm pitch aligns with the target PCB footprint and that the 3 A current rating satisfies the circuit load requirements without exceeding thermal limits.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, which provides modular interconnect solutions for space-constrained designs. The M80 series is engineered for high-density applications, offering versatile configurations including various row counts and termination styles to suit diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek headers with identical 14-position, 2 mm pitch, and through-hole specifications. Verify mechanical compatibility and electrical ratings before cross-referencing with alternative manufacturers' offerings.
