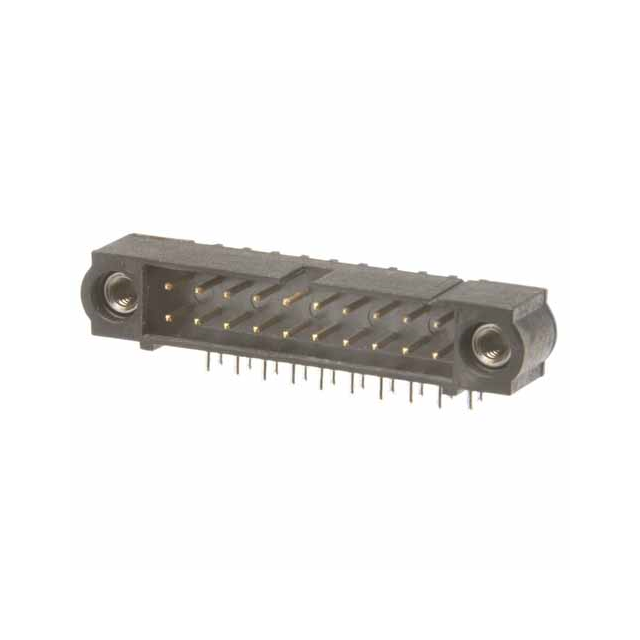

M80-5302022

Description：CONN HEADER R/A 20POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:c51afbccb788 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5302022 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 20POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5302022

Description：CONN HEADER R/A 20POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5302022

M80-5302022

Headers, Male Pins Overview

The Harwin M80-5302022 is a Datamate J-Tek male DIL horizontal throughboard connector designed for power to board applications. It features 6 positions with a 2 mm pitch and utilizes solder pin termination. The unit operates within a temperature range of -55°C to +125°C, has an 800V rating, and carries a 3 A current rating. Constructed with phosphor bronze contacts gold-plated and PPS housing, it offers robust mechanical stability.

Headers, Male Pins Feature Summary

Horizontal throughboard mounting configuration
Jackscrew retention system
High shock and vibration resistance
Gold-plated phosphor bronze contacts

Headers, Male Pins Applications

Industrial control systems
Automotive electronics
Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific jack-screw variant and tail length against the official datasheet before ordering. Confirm that the component status aligns with project requirements, as availability may vary by region. Ensure compatibility with mating female connectors in the Datamate J-Tek series. Cross-reference the manufacturer part number with distributor catalogs to confirm exact specifications.

Headers, Male Pins Selection Notes

Select this connector when horizontal mounting and high mechanical durability are required. The 2 mm pitch suits dense layouts. Verify that the 3 A current rating meets circuit demands. Ensure the operating temperature range covers environmental conditions. Check housing material compatibility with assembly processes.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series, known for rugged performance. It is classified under power connectors. The product line emphasizes reliability in harsh environments. It complements other Datamate accessories for complete interconnect solutions.
