M80-5302405

Headers, Male Pins Overview

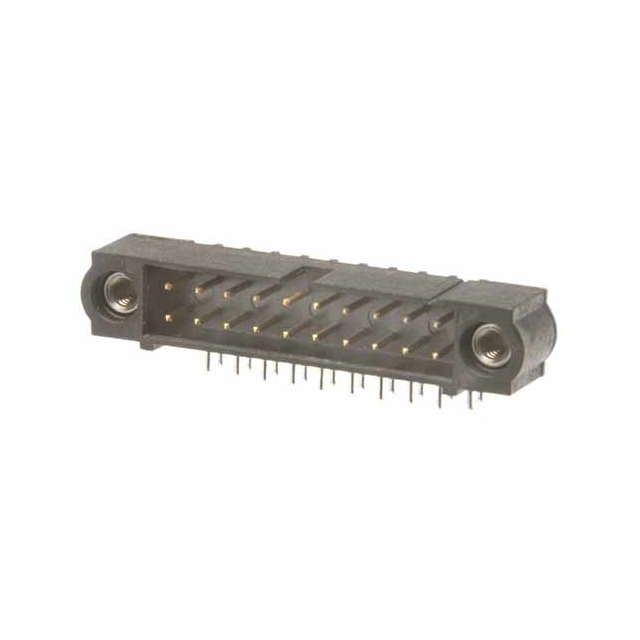

The Harwin M80-5302405 is a Power to the Board connector from the Datamate J-Tek series. It features a horizontal layout with 12+12 positions (24 contacts total) and a 3 mm tail. The connector utilizes a right-angle, male pin configuration with a 0.079 inch (2.00mm) pitch. It employs solder terminals for board attachment and includes M2x0.4 jack screws for secure mating. The insulator is black, and the component is RoHS compliant.

Headers, Male Pins Feature Summary

• Horizontal power delivery design with integrated 3 mm tail
• Secure mechanical locking via M2x0.4 jack screws
• High voltage rating of 800VAC/DC for robust power transmission
• Right-angle male pin interface for compact board integration

Headers, Male Pins Applications

• Industrial control systems requiring high-voltage power distribution
• Automotive electronic modules needing reliable power-to-board connections
• Military equipment demanding secure, locked connector interfaces
• General industrial applications utilizing Datamate J-Tek series components

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 12+12 position count and 3 mm tail length. Confirm the presence of M2x0.4 jack screws if locking functionality is critical for the assembly. Ensure the horizontal orientation aligns with the PCB layout constraints. Check for RoHS compliance documentation if environmental regulations apply to the final product.

Headers, Male Pins Selection Notes

Select this model when a horizontal power connection with a short tail is necessary. The 800V rating makes it suitable for higher voltage applications compared to standard signal connectors. The jack screw mechanism provides superior retention force compared to slide-lock variants. Consider the right-angle form factor for space-constrained vertical mounting scenarios.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, designed for mixed-signal and power applications. The M80-530 base indicates a specific housing and contact arrangement within the Harwin portfolio. It complements other J-Tek receptacles and headers to form complete interconnect solutions for demanding environments.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify compatibility with mating receptacles from the same Datamate J-Tek series before considering alternative sources.
