M80-5302622

Headers, Male Pins Overview

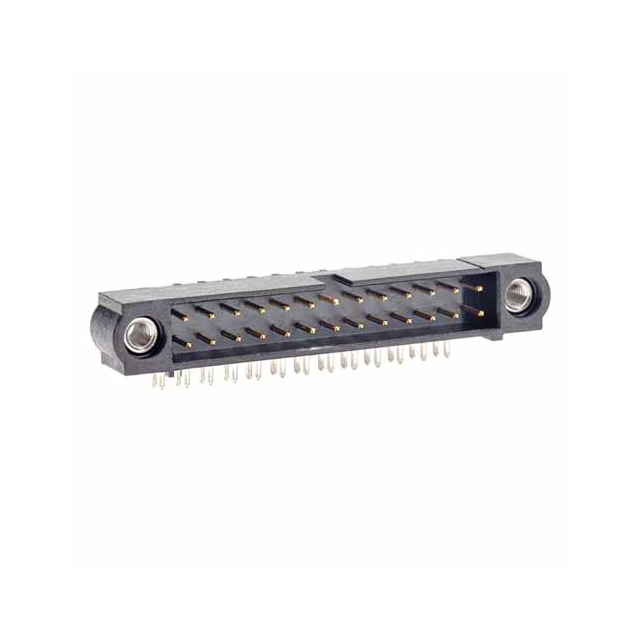

The Harwin M80-5302622 is a Datamate J-Tek power-to-board connector featuring 26 positions (13+13) in a dual inline configuration. It utilizes male pin contacts with a 2 mm pitch and 2 mm row spacing. Designed for through-hole mounting, it employs solder pin termination. The housing is constructed from black Polyphenylene Sulfide (PPS), while contacts are phosphor bronze with gold plating. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Dual inline male pin configuration for robust power distribution
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• High-temperature PPS housing provides thermal stability

Headers, Male Pins Applications

• Industrial control systems requiring high-reliability power connections
• Telecommunications equipment power interfaces
• Automotive electronics power distribution modules

Headers, Male Pins Procurement Notes

Verify component authenticity against official Harwin documentation. Confirm RoHS compliance status as indicated in specific datasheets. Check for obsolescence or lifecycle changes prior to procurement. Ensure compatibility with mating female sockets within the Datamate J-Tek series. Validate packaging quantities against distributor specifications.

Headers, Male Pins Selection Notes

Select this model for applications demanding high-current capacity in compact spaces. The 2 mm pitch allows dense board layouts. Gold plating suits environments requiring corrosion resistance. Through-hole installation offers mechanical stability. Verify mating connector gender and locking mechanisms match system requirements.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek family, designed for high-density interconnects. It serves as a power-to-board solution, bridging PCBs with external power sources or other boards. The series emphasizes reliability in harsh environments through robust materials and precise engineering.

Headers, Male Pins Replacement Considerations

M80-5L126M1

Headers, Male Pins FAQ

What is the contact material?

The contacts are made of phosphor bronze with gold plating.

Is this connector right-angle or straight?

The M80-5302622 is a straight, vertical through-board connector.
