M80-5302642

Headers, Male Pins Overview

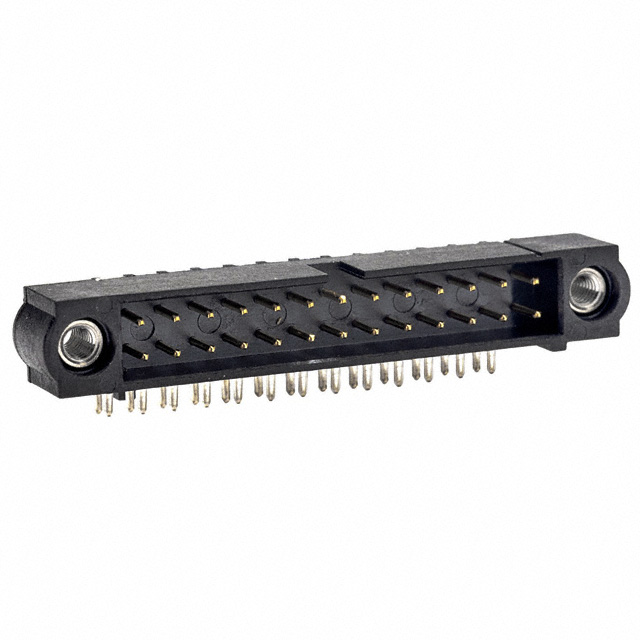

The Harwin M80-5302642 is a Datamate J-Tek series male header connector designed for power-to-board applications. It features 26 positions (13+13) with a 2mm pitch and 2 rows. The connector utilizes phosphor bronze contacts with gold plating on the mating interface and tin on the tail, rated for 3A current and 800V voltage. It employs a horizontal through-hole solder termination style with a push-turn locking mechanism and includes keying slots and mating flanges for secure assembly.

Headers, Male Pins Feature Summary

• High-reliability power-to-board design within the Datamate J-Tek series
• Push-turn locking mechanism ensures secure mechanical connection
• Gold-plated mating contacts provide durable electrical performance
• Integrated keying slot and mating flange prevent misalignment

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Automotive electronics harnesses
• Medical device internal power distribution
• Telecommunications infrastructure equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm contact plating thickness and tail length specifications. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Confirm that the horizontal orientation and locking latch type match the mechanical constraints of the target PCB layout and enclosure design before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high voltage isolation up to 800V is required in a compact form factor. The 2mm pitch allows for dense board layouts while maintaining adequate creepage distances. Consider the push-turn lock for vibration-prone environments where standard snap-fit connectors may fail. Ensure the selected variant matches the required current rating of 3A per contact for the intended load.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability in harsh environments. The M80-5 series specifically addresses power distribution needs with options for various orientations and locking mechanisms. It complements other Harwin interconnect solutions by providing standardized pinouts and mechanical interfaces across the product line.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference with Harwin's official replacement guide or consult manufacturer engineering support for equivalent components if this specific configuration is unavailable.
