M80-5303422

Headers, Male Pins Overview

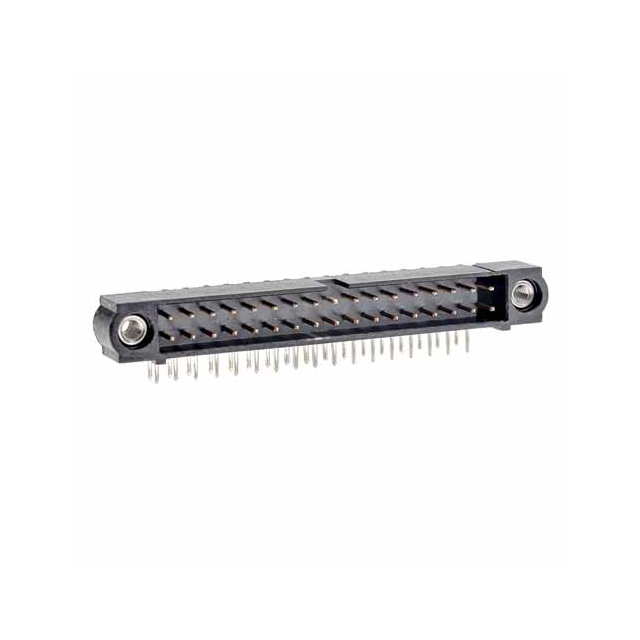

The M80-5303422 is a Datamate J-Tek series header connector manufactured by Harwin Inc. It features a 34-position, dual-row configuration with a 2.00mm pitch and right-angle through-hole mounting. Rated for 120V and 3.0A per contact, it utilizes phosphor bronze pins with gold plating. The housing is black PPS with glass fiber reinforcement, rated UL94 V-0, and operates from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting style for board-to-board or cable applications
• Dual-row design with 34 positions and 2.00mm mating pitch
• Gold-plated phosphor bronze contacts for reliable signal transmission
• High-temperature resistant PPS insulation with UL94 V-0 flammability rating

Headers, Male Pins Applications

• Aviation systems requiring rugged interconnects
• Defense electronic equipment
• Industrial control panels
• Medical critical electronic equipment

Headers, Male Pins Procurement Notes

Verify current availability status as distribution may be limited. Confirm RoHS3 compliance and REACH status prior to ordering. Check for any recent PCN notices regarding material changes or obsolescence. Ensure compatibility with mating receptacles in the same Datamate J-Tek series.

Headers, Male Pins Selection Notes

Select this model for high-density connections requiring right-angle orientation. Suitable for environments demanding thermal stability up to 125°C. Verify pin count and row configuration match PCB layout requirements. Consider shielding needs if EMI protection is required for the application.

Headers, Male Pins Part Context

Part of the Datamate J-Tek family, designed for harsh environments including aviation and defense. Offers robust mechanical locking and reliable performance under vibration and shock. Complements other Harwin interconnect solutions for complete system integration.

Headers, Male Pins Replacement Considerations

M80-5303442 is a confirmed substitute within the same series offering similar specifications.
