M80-5303442

Headers, Male Pins Overview

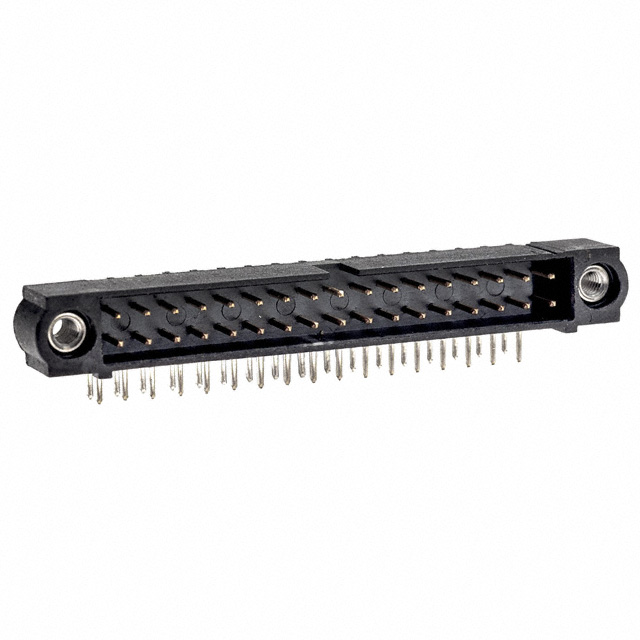

The M80-5303442 is a Datamate J-Tek series male pin header manufactured by Harwin Inc. It features a 2 mm pitch and a 34-position, 2-row configuration designed for through-hole mounting. The connector utilizes phosphor bronze contacts with gold plating and a black polyphenylene sulfide (PPS) insulator. It supports a maximum current rating of 3 A and a voltage rating of 800 V, operating within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Datamate J-Tek series interconnect system
• Gold-plated phosphor bronze contacts
• Right-angle through-hole solder termination
• High-voltage insulation capability

Headers, Male Pins Applications

• Wire-to-board connections
• Board-to-board interconnects
• Industrial control systems
• Power distribution modules

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the official Harwin datasheet to confirm contact finish thickness and housing material variations. Ensure the ordering part number matches the required right-angle orientation and 34-position count. Cross-reference RoHS compliance status if environmental regulations apply to the target assembly.

Headers, Male Pins Selection Notes

Select this component when high-voltage isolation up to 800 V is required in a compact form factor. The 2 mm pitch allows for dense circuit layouts while maintaining reliable signal integrity. Consider the through-hole mounting style for robust mechanical stability in vibration-prone environments compared to surface-mount alternatives.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability performance in demanding applications. The M80 series provides versatile interconnect solutions with various latch options and tail configurations. The 34-position variant offers a balanced solution for multi-signal routing without excessive board space consumption.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with mating plugs from the same Datamate J-Tek series before considering alternative sourcing.
