M80-5305042

Headers, Male Pins Overview

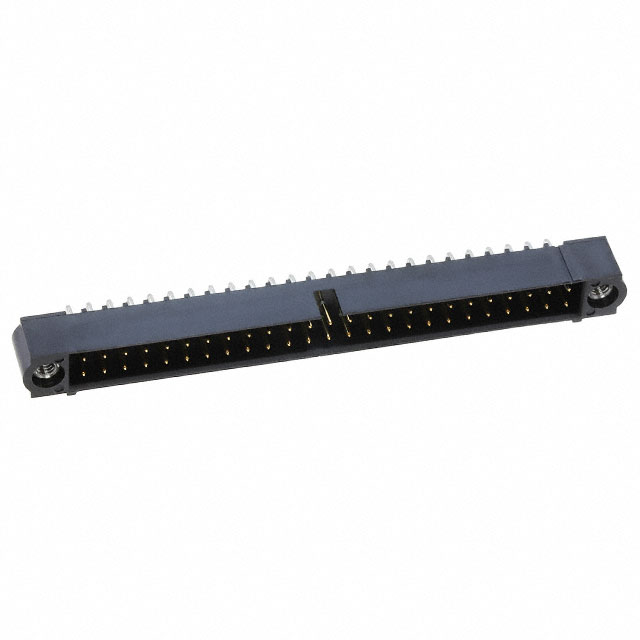

The M80-5305042 is a Datamate J-Tek series PCB header manufactured by Harwin Inc. It features a right-angle, through-hole mounting style with 50 positions arranged in two rows. The connector utilizes a 2.00mm (0.079 inch) pitch and is rated for 120V with a current capacity of 3A. Contacts are made from phosphor bronze with gold plating, while the housing is black polyphenylene sulfide (PPS). It operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Datamate J-Tek modular system design allows for mixed contact arrangements.
• Right-angle through-hole termination ensures secure PCB attachment.
• Includes mating flange and keying slot for precise alignment.

Headers, Male Pins Applications

• Industrial control systems
• Automotive electronics
• General purpose interconnects

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and orientation. Confirm that the gold contact plating meets the application's conductivity requirements. Ensure the housing material compatibility with the operating environment is validated against the datasheet specifications before finalizing the procurement order.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle connection is required. The 2.00mm pitch supports significant I/O density. Verify that the 3A rating per contact is sufficient for the circuit load. Consider the mechanical constraints of the right-angle form factor during PCB layout planning.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its versatility in board-to-board and wire-to-board applications. The series offers various configurations including vertical and right-angle headers, sockets, and cable assemblies, providing a standardized solution for diverse electronic interconnect needs.

Headers, Male Pins Replacement Considerations

Compatible counterparts include M80-5405042 and M80-5505042. These variants share the same 50-position count and 2.00mm pitch but differ in mounting style or row configuration. Ensure mechanical fit and electrical ratings align before substitution.
