M80-5320642

Headers, Male Pins Overview

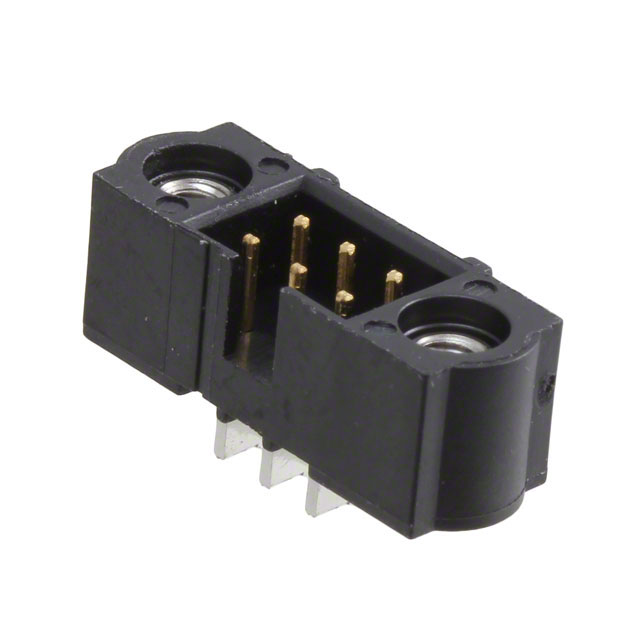

The M80-5320642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 6-position (3+3) configuration with a 2.00mm pitch and 2.54mm row spacing. Designed for surface mount right-angle installation, it utilizes phosphor bronze contacts with gold plating. The housing is constructed from black PPS material rated UL94 V-0. Electrical ratings include 2.2A current and 800V voltage, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board-to-board or cable connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• UL94 V-0 rated PPS housing provides thermal stability and fire resistance

Headers, Male Pins Applications

• Board-to-board interconnects in industrial control systems
• Cable-to-board connections in automotive electronics
• High-density mounting in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix '42' confirms the required contact finish and tail length specifications. Ensure the right-angle orientation matches the PCB layout requirements. Confirm RoHS compliance status if restricted substances are mandated for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile right-angle header is required for space-constrained designs. The 2.00mm pitch allows for high pin density while maintaining adequate spacing. Consider the 800V rating for applications requiring higher isolation voltages compared to standard 120V connectors.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for its robust mechanical locking and versatile configuration options. The M80-532 base number indicates a surface mount right-angle header variant. It complements the broader Datamate ecosystem by providing specialized mounting orientations for complex assembly needs.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Harwin Datamate J-Tek headers with identical 3+3 positioning and right-angle SMT footprints. Verify mating compatibility with existing female counterparts before substitution.
