M80-5321042

Headers, Male Pins Overview

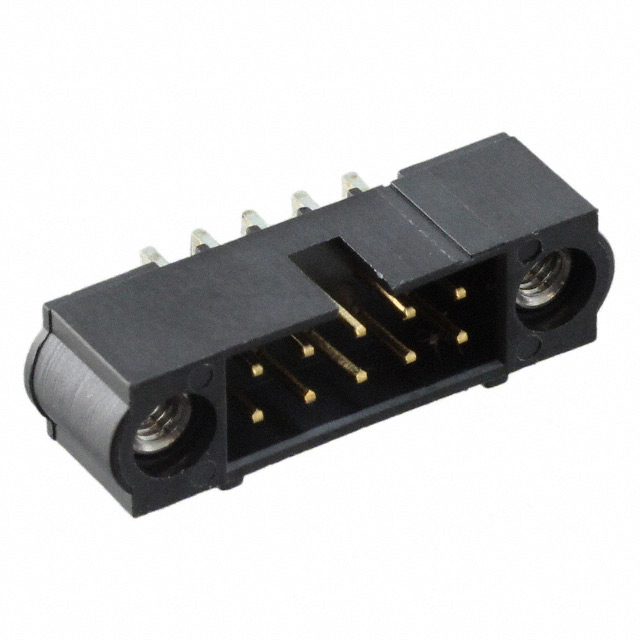

The Harwin M80-5321042 is a Power to the Board connector from the Datamate J-Tek series, designed for board power delivery. It features a 10-position (5+5) male header configuration with a 2mm pitch and two rows. The component utilizes surface-mount technology (SMT) termination and crimp contacts. Rated for 3A current and 120V voltage, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black Polyphenylene Sulfide (PPS) with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Crimp contact termination ensures reliable electrical connection for power applications.
• Surface-mount design facilitates automated assembly on printed circuit boards.
• High-reliability four-finger beryllium copper contacts maintain integrity under vibration and shock.

Headers, Male Pins Applications

• Board-to-board power distribution
• Industrial equipment power interfaces
• Automotive electronic systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, tail length, and keying options. Ensure compatibility with mating connectors in the Datamate J-Tek family. Confirm RoHS compliance status and material specifications prior to procurement to meet project requirements.

Headers, Male Pins Selection Notes

Select this component for high-density power delivery requiring robust mechanical retention. The crimped contact style offers superior durability compared to soldered alternatives in dynamic environments. Verify that the SMT footprint matches the target PCB layout and that the 2mm pitch aligns with system spacing constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek series, known for high reliability in harsh environments. The 'Power to the Board' designation indicates its primary function is delivering power directly to circuit boards. The series supports various termination styles and configurations for diverse industrial and automotive needs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin M80-series headers if identical specifications are required, ensuring matching pitch, row count, and contact type.

Headers, Male Pins FAQ

What is the contact termination method for this connector?

The M80-5321042 uses crimp contacts for secure electrical connection.

Is this connector suitable for high-vibration environments?

Yes, the Datamate J-Tek series is designed to withstand high loads of vibration, shock, and acceleration.
