M80-5400422

Headers, Male Pins Overview

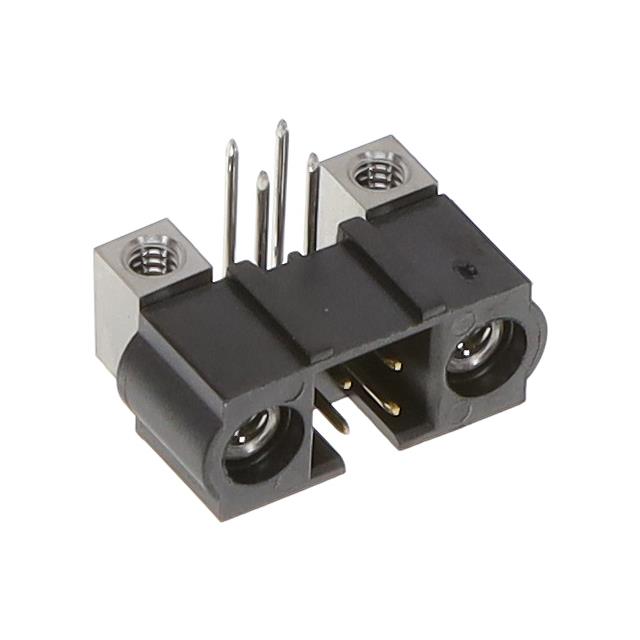

The Harwin M80-5400422 is a Datamate J-Tek power-to-board connector featuring a 4-position female crimp socket configuration with a solder bore tail. It utilizes a 2mm pitch and operates within a temperature range of -55°C to +125°C. The contacts are gold-plated brass, housed in black polyphenylene sulfide (PPS). Rated for 3A current and 120V AC/DC, it supports board-to-board and wire-to-board systems via SMD/SMT installation.

Headers, Male Pins Feature Summary

• Shock and vibration resistance rated at 100G shock, 40G bump, and 10G vibration.
• Dual-purpose design supporting both board-to-board and wire-to-board interconnections.
• Robust housing material ensures stability across extreme environmental temperatures.

Headers, Male Pins Applications

• Industrial control systems requiring high mechanical durability
• Automotive electronics interfaces
• Harsh environment sensor modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'W/JS' indicates the inclusion of jack screws or locking mechanisms as defined by Harwin's official documentation. Confirm that the crimp termination type matches your assembly tooling requirements. Ensure the solder bore tail length aligns with your PCB thickness constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when high mechanical resilience against shock and vibration is critical. The female crimp configuration suits applications where mating pins are fixed on the opposing board. Verify compatibility with the corresponding male pin header from the same Datamate J-Tek series to ensure proper engagement and electrical continuity.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek series, designed for compact power and signal transmission. The M80 prefix identifies it within the broader rectangular connector catalog. It complements other variants like M80-5401442 and M80-5402042, offering specialized contact counts and termination styles for diverse system architectures.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Cross-reference with other M80-series headers only if mechanical footprint and electrical ratings match exactly. Consult Harwin engineering for alternative solutions if supply constraints exist.

Headers, Male Pins FAQ

What is the contact gender for M80-5400422?

The M80-5400422 features female crimp sockets designed to mate with male pin headers.

Does this connector support wire-to-board connections?

Yes, the Datamate J-Tek series allows for both board-to-board and wire-to-board interconnections.
