M80-5400622

Headers, Male Pins Overview

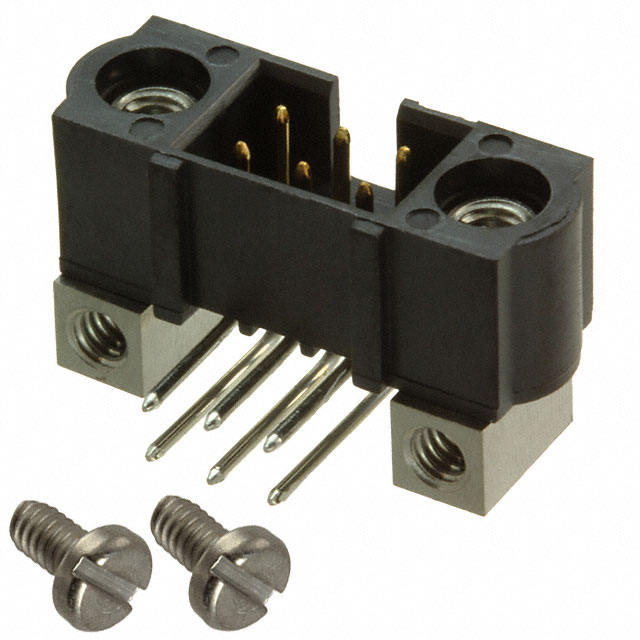

The Harwin M80-5400622 is a Datamate J-Tek power-to-board connector featuring a 6-position, two-row male header configuration. It utilizes a 2 mm pitch and is designed for right-angle through-hole mounting with a 3 mm tail length. The contacts are constructed from phosphor bronze with gold plating, housed in a black polyphenylene sulfide (PPS) shell. Rated for 3 A current and 120 V, it operates within a temperature range of -55 °C to +125 °C.

Headers, Male Pins Feature Summary

• Employs high-reliability four-finger beryllium copper contact technology to ensure connection integrity without signal loss.
• Features a robust polyphenylene sulfide housing providing thermal stability and mechanical durability.
• Designed for right-angle surface integration with specific tail lengths for secure through-hole soldering.

Headers, Male Pins Applications

• Power distribution on printed circuit boards
• Industrial control system interconnects
• Embedded hardware module connections

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific suffix matches the required right-angle orientation and tail length specifications. Ensure compatibility with mating sockets before procurement, as this is a male header variant.

Headers, Male Pins Selection Notes

Select this component when a right-angle, two-row power interface is required for space-constrained PCB layouts. The 2 mm pitch allows for moderate density, while the 3 A rating supports standard power delivery needs. Verify that the operating environment remains within the specified -55 °C to +125 °C range for optimal performance.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series, known for compact, high-density interconnect solutions. It serves as a male header variant within the broader M80 family, specifically engineered for reliable power transmission in demanding electronic applications requiring durable mechanical connections.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must verify pinout compatibility and physical dimensions if considering alternative manufacturers or different series headers for replacement purposes.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with gold plating to ensure conductivity and corrosion resistance.

Does this connector support right-angle mounting?

Yes, the M80-5400622 is specifically designed for right-angle installation via through-hole soldering.
