M80-5400642

Headers, Male Pins Overview

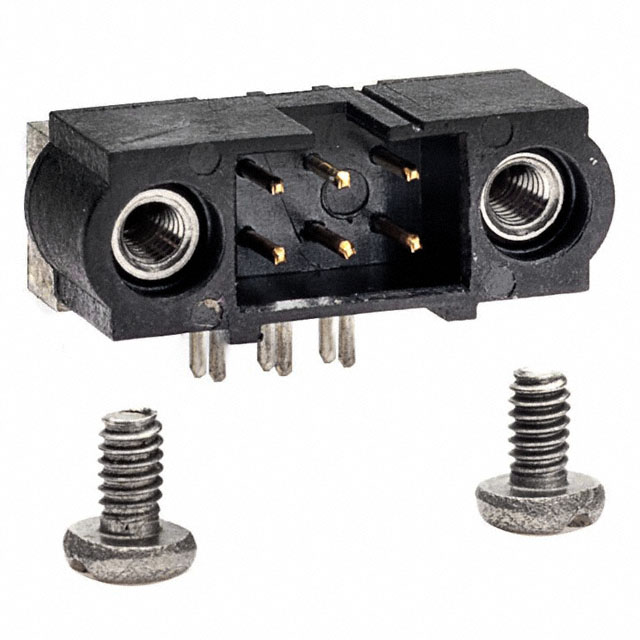

The Harwin M80-5400642 is a Datamate J-Tek power-to-board connector designed for high-reliability applications. It features a 6-position (3+3) male pin configuration with a 2 mm pitch and right-angle mounting style. The component supports a current rating of 3 A and operates within a temperature range of -55 C to +125 C. Constructed with phosphor bronze contacts gold-plated over nickel, the housing utilizes Polyphenylene Sulfide (PPS). It employs through-hole solder termination and includes a 3 mm tail with jack screws for secure mating.

Headers, Male Pins Feature Summary

• Right-angle male pin header design for compact board integration
• High-temperature PPS housing material ensuring thermal stability
• Gold-plated phosphor bronze contacts for reliable conductivity
• Integrated jack screw mechanism for secure connection retention

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Automotive electronics operating in high-temperature environments
• Medical equipment needing reliable signal and power transmission
• Telecommunications infrastructure hardware

Headers, Male Pins Procurement Notes

Verify the specific contact plating and tail length requirements against the official datasheet before ordering. Confirm that the right-angle orientation matches the PCB layout constraints. Ensure compatibility with the corresponding female socket series for proper mating. Check for any recent RoHS or REACH compliance updates from the manufacturer.

Headers, Male Pins Selection Notes

Select this part when a right-angle male connector with jack screw retention is required. The 2 mm pitch allows for dense packing while maintaining 3 A current capacity. Consider the through-hole soldering process and the need for additional mechanical locking via the integrated jack screws during system design.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series by Harwin, specialized for power-to-board applications. It complements the broader M80 family, offering high-density interconnect solutions. The J-Tek variant specifically integrates jack screws for enhanced mechanical security compared to standard latch designs.

Headers, Male Pins Replacement Considerations

M80-5L106M1

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold plating finish.

Does this connector include a locking mechanism?

Yes, it features an integrated jack screw for secure mating retention.
