M80-5401005

Headers, Male Pins Overview

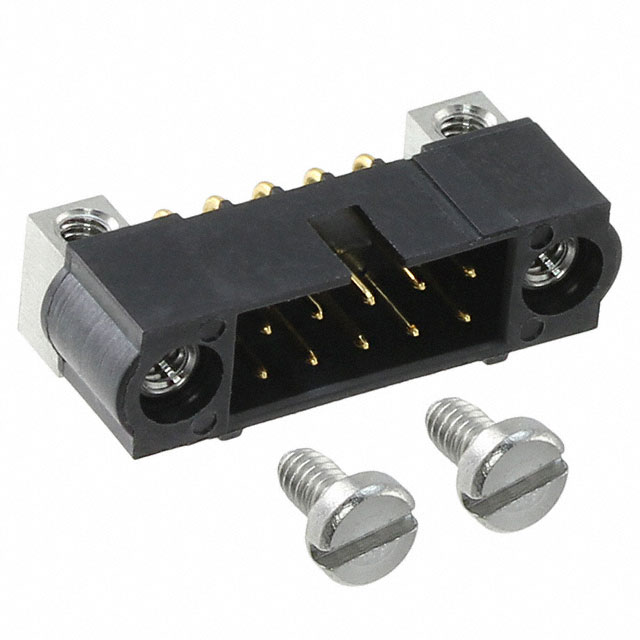

The M80-5401005 is a Datamate J-Tek connector header manufactured by Harwin Inc. It features a 10-position configuration with a 2.00mm (0.079 inch) pitch. Designed for through-hole right-angle mounting, the unit utilizes male pin contacts made from beryllium copper. The insulation housing is constructed from black polyphenylene sulfide (PPS). Electrical specifications include a current rating of 2.2A and a voltage rating of 800V. Contact finish thickness on the posts is specified at 0.75µm (29.5µin).

Headers, Male Pins Feature Summary

• Four-finger beryllium copper contact technology ensures connection integrity without signal loss.
• High-reliability design suitable for demanding industrial environments.
• Right-angle through-hole termination facilitates compact board layout integration.

Headers, Male Pins Applications

• Industrial control systems requiring high-reliability interconnects
• Test and measurement equipment interfaces
• Automotive electronics applications

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required right-angle orientation and through-hole termination style. Confirm that the 2.00mm pitch aligns with the target PCB footprint design. Ensure compatibility with the specified 2.2A current rating for the intended circuit load. Check for any specific RoHS compliance documentation requirements relevant to the project's regulatory standards.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for space-constrained designs. The 2.00mm pitch offers a balance between density and manufacturability. Consider the 800V rating if operating in high-voltage environments. The PPS housing material provides thermal stability. Evaluate the mechanical retention needs against the standard through-hole mounting profile.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series, which is characterized by high-reliability connectors for harsh environments. The series utilizes proprietary contact technology to maintain signal integrity. The M80-540 prefix indicates a header variant within the broader Datamate ecosystem, designed for robust performance in industrial and automotive sectors.

Headers, Male Pins Replacement Considerations

Cross-reference with other Harwin Datamate J-Tek headers sharing the same 2.00mm pitch and 10-position count. Verify that alternative parts maintain the right-angle orientation and through-hole termination method. Ensure electrical ratings meet or exceed the original specifications.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from beryllium copper, utilizing Harwin's four-finger technology for enhanced reliability.

Is this connector suitable for high-voltage applications?

Yes, it has a voltage rating of 800V, making it suitable for such environments.
