M80-5401022

Headers, Male Pins Overview

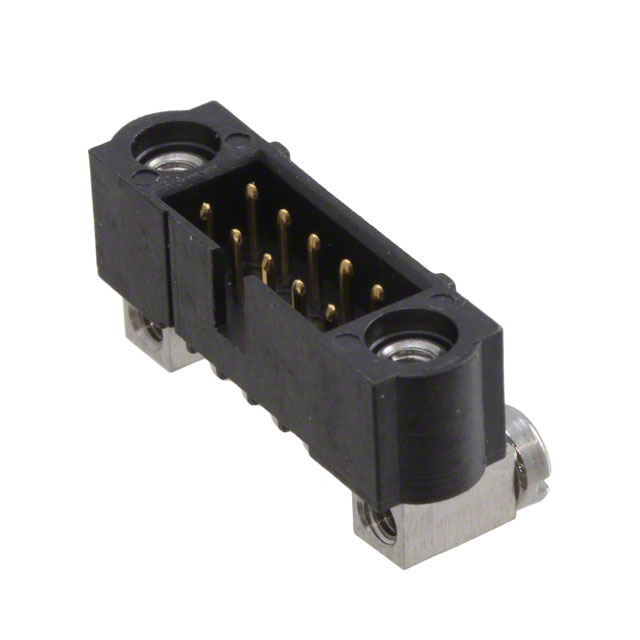

The Harwin M80-5401022 is a Datamate J-Tek male header connector designed for board-to-board or cable applications. It features a 10-position configuration with a 2mm pitch and 2mm row spacing. The component utilizes right-angle surface mount termination with a 3mm tail length. Electrical specifications include a current rating of 2.2A and a voltage rating of 800V. The contacts are brass with gold plating, housed in black PPS insulation rated UL94 V-0. Operating temperature ranges from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design with extended 3mm tail for secure PCB integration
• High-voltage capability up to 800V with robust 2.2A current rating
• Gold-plated brass contacts ensure reliable signal transmission
• UL94 V-0 rated polyphenylene sulfide housing for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnects requiring high voltage isolation
• Cable assemblies needing right-angle termination
• Industrial control systems operating in extreme temperatures
• Automotive electronics demanding reliable power distribution

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact tail length and plating thickness. Ensure compatibility with mating sockets within the Datamate J-Tek series. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when right-angle SMT mounting is required alongside high-voltage isolation needs. The 2mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the 3mm tail dimension for mechanical stability during reflow soldering processes compared to standard height headers.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series by Harwin Inc., known for compact rectangular connectors. The M80-540 base number indicates a male header variant. This specific part integrates surface mount technology with high-performance electrical ratings suitable for demanding industrial environments.

Headers, Male Pins Replacement Considerations

M80-5S210M4 is listed as an alias for this part number. Verify exact dimensional tolerances and pinout configurations when sourcing substitutes from other manufacturers to ensure functional equivalence.
