M80-5402022

Headers, Male Pins Overview

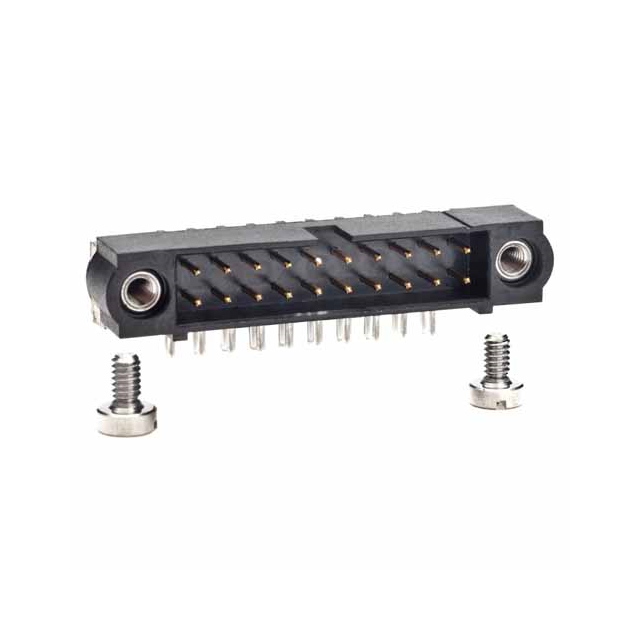

The Harwin M80-5402022 is a Datamate J-Tek series power-to-board connector classified as a male header. It features a 20-position configuration arranged in two rows with a 2 mm pitch. Designed for through-hole mounting, it utilizes solder pin termination. The component has a current rating of 3 A and a voltage rating of 800 V. Constructed with phosphor bronze contacts gold-plated and a PPS housing, it operates within a temperature range of -55 C to +125 C.

Headers, Male Pins Feature Summary

• Features fully shrouded contacts and polarized mouldings to ensure correct mating alignment.
• Designed for secure board-to-board or wire-to-board interconnections.
• Utilizes a robust Polyphenylene Sulfide (PPS) housing material.

Headers, Male Pins Applications

• Industrial control systems requiring high reliability
• Power distribution units
• Communication equipment backplanes

Headers, Male Pins Procurement Notes

Verify the specific contact count and orientation against project requirements before ordering. Confirm that the through-hole right-angle mounting style aligns with the PCB layout constraints. Ensure the 2 mm pitch matches the mating female connector specifications. Check RoHS compliance status if required by environmental regulations. Validate the 800 V voltage rating meets the system's electrical safety standards.

Headers, Male Pins Selection Notes

Select this part when a male header with 20 positions is needed for high-voltage applications up to 800 V. The right-angle through-hole design suits space-constrained vertical assemblies. Consider the 3 A current rating for power delivery needs. The Datamate J-Tek series offers compatibility with a wide range of Harwin female counterparts. Verify mechanical clearance for the 3 mm tail length if applicable.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek family, known for compact power-to-board solutions. The M80 series provides versatile interconnect options for various industrial and commercial electronics. As a male header, it pairs with corresponding female sockets to establish reliable electrical connections. The design emphasizes durability and precise alignment in demanding environments.

Headers, Male Pins Replacement Considerations

M80-5401042

Headers, Male Pins FAQ

What is the voltage rating of the M80-5402022?

The maximum voltage rating is 800 V.

Does this connector feature polarized mouldings?

Yes, the connector includes polarized mouldings to prevent incorrect mating.
