M80-5402622

Headers, Male Pins Overview

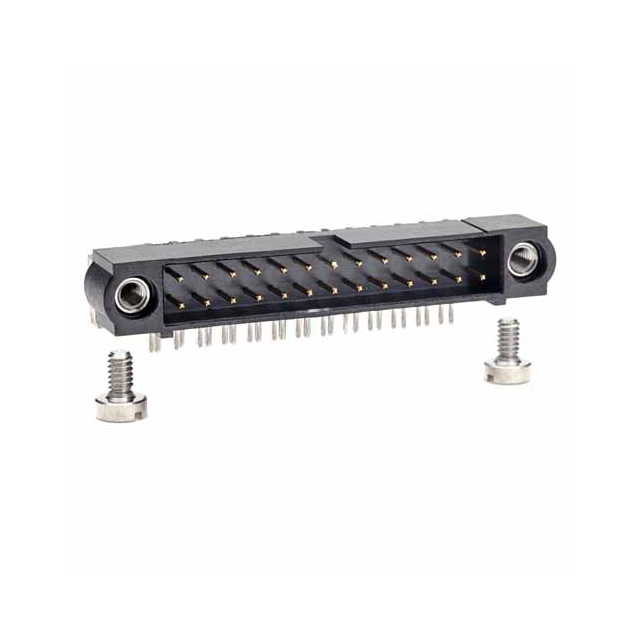

The M80-5402622 is a Datamate J-Tek series PCB header manufactured by Harwin Inc. It features a male pin configuration with 26 positions arranged in a dual-row layout. The connector utilizes a 2 mm (0.079 inch) mating pitch and incorporates a right-angle mounting style for through-hole termination. Constructed with phosphor bronze contacts finished with gold plating, the housing is made of black Polyphenylene Sulfide (PPS). It supports a rated current of 3 A and a voltage of 120 V, operating within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for space-efficient board integration
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission
• Polyphenylene Sulfide (PPS) housing providing high thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Power distribution modules

Headers, Male Pins Procurement Notes

Verify the specific suffix '22' against official Harwin documentation to confirm tin-plated contact finishes and tail length specifications. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Confirm that the right-angle orientation meets mechanical clearance requirements on the target printed circuit board layout before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row male header is required for 26-position applications. The 2 mm pitch allows for dense packing while maintaining electrical isolation. Consider the 3 mm tail length for adequate solder joint formation during wave or selective soldering processes. Verify that the 120 V rating aligns with the system's electrical requirements.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek product line, which is designed for high-density interconnect solutions. The series offers various configurations including vertical and right-angle headers, as well as sockets and cable assemblies. The M80-5402622 specifically addresses needs for compact, robust connections in industrial and consumer electronics environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 26-position, right-angle, through-hole specifications. Ensure mating socket counterparts are selected from the same series to maintain mechanical locking and electrical performance integrity.
