M80-5403422

Headers, Male Pins Overview

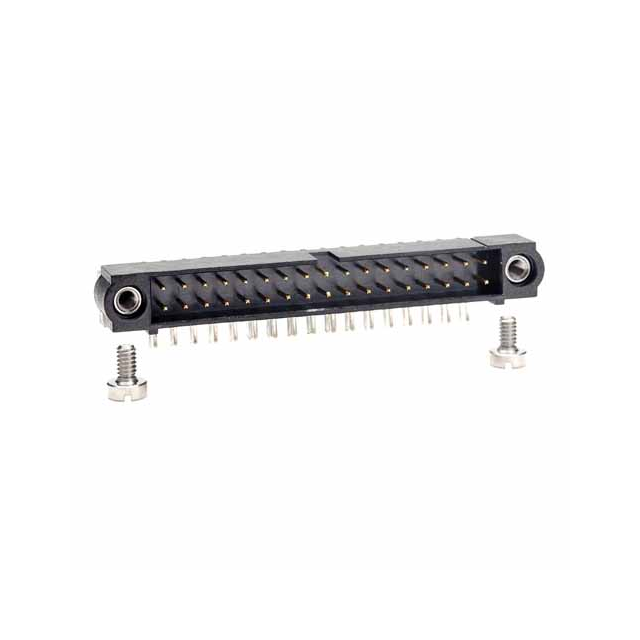

The M80-5403422 is a Datamate J-Tek power-to-board header manufactured by Harwin Inc. It features a 34-position, dual-row male pin configuration with a 2 mm pitch. Designed for surface-mount installation, the connector utilizes gold-plated phosphor bronze contacts housed in black Polyphenylene Sulfide (PPS). The unit supports a rated current of 3 A and operates within a temperature range of -55°C to +125°C. It includes a 3 mm tail length and incorporates a keying system for secure mating.

Headers, Male Pins Feature Summary

• Dual-row male pin architecture designed for robust power distribution applications
• Integrated keying mechanism ensures precise alignment during board-to-board or cable connections
• Gold-plated phosphor bronze contacts provide reliable conductivity and corrosion resistance
• Polyphenylene Sulfide housing offers high thermal stability and mechanical durability

Headers, Male Pins Applications

• Board-to-board interconnects in industrial control systems
• Power distribution modules in automotive electronics
• General-purpose PCB connections requiring high reliability
• Military equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact tail length and keying options. Ensure compatibility with mating receptacles from the same Datamate J-Tek series. Confirm RoHS compliance status through the manufacturer's latest certification documents before integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this component when a 34-position surface-mount male header is required for high-current applications. The 2 mm pitch allows for dense board layouts while maintaining adequate spacing. Consider the straight versus right-angle orientation requirements and verify that the 3 mm tail length fits the assembly height constraints.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high-density capabilities. The M80-54 series specifically addresses power-to-board needs with standardized dimensions. It complements other Harwin connectors by offering consistent interface geometry across various position counts and mounting styles.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical specifications from the same manufacturer series.
