M80-5404222

Headers, Male Pins Overview

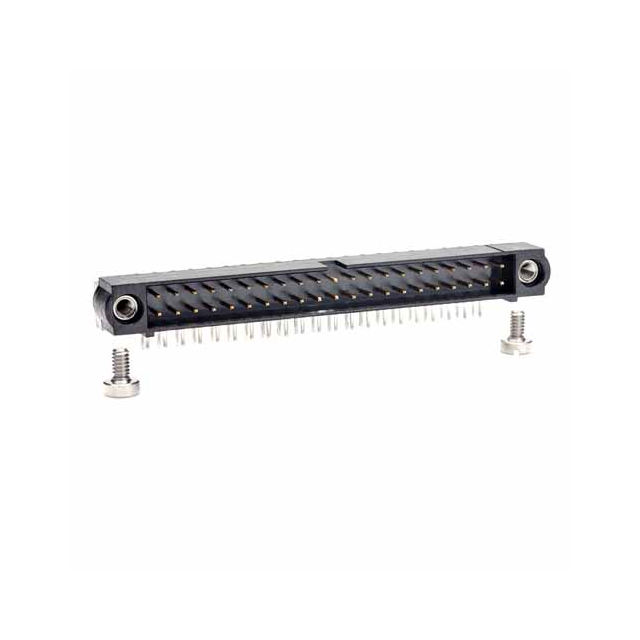

The Harwin M80-5404222 is a Datamate J-Tek series power-to-board connector header. It features 42 positions arranged in a dual-row configuration with a 2 mm pitch. The component utilizes male pin contacts made of phosphor bronze with gold plating, housed in black polyphenylene sulfide (PPS). Designed for through-hole mounting, it supports a rated current of 3 A and a voltage rating of 120 V AC/DC. The unit operates within a temperature range of -55°C to +125°C and includes a 3 mm tail length.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for board-to-board or wire-to-board connections
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Polyphenylene sulfide housing provides thermal stability and flame resistance
• Through-hole termination with extended tail pins for secure PCB mounting

Headers, Male Pins Applications

• Industrial control systems requiring high-density power distribution
• Automotive electronics interfaces
• Consumer appliance mainboard connections
• Telecommunications equipment power headers

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm exact pin count, orientation, and tail specifications. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region.

Headers, Male Pins Selection Notes

Select this component when a 42-position right-angle male header is required for high-current applications. The 2 mm pitch allows for compact layout while maintaining robust mechanical stability. Consider the 3 mm tail length for adequate solder joint formation on standard PCB thicknesses. Verify that the mating connector belongs to the compatible female socket series.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability in demanding environments. The M80-54 series specifically denotes right-angle male headers with through-hole termination. These connectors are engineered for applications requiring durable electrical connections under vibration and thermal stress conditions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 42-position count, 2 mm pitch, right-angle orientation, and male contact type. Verify that alternative components support the same 3 A current rating and PPS housing material. Cross-reference with Harwin's official replacement guide for equivalent part numbers.
