M80-5405022

Headers, Male Pins Overview

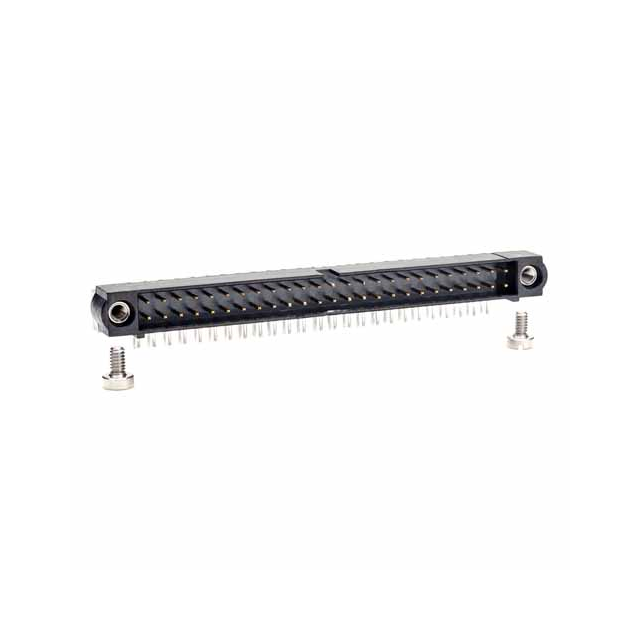

The M80-5405022 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 50-position, two-row configuration with a 2mm pitch and 120V rating. Designed for through-hole vertical mounting, it utilizes phosphor bronze contacts with gold plating and PPS insulation. The assembly includes a shroud and supports board-to-board or wire-to-board applications within a -55°C to +125°C operating range.

Headers, Male Pins Feature Summary

• Datamate J-Tek series interconnect system
• Shrouded male pin header design
• Through-hole vertical PCB mounting
• Gold-plated phosphor bronze contacts

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial control systems
• Automotive electronics

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability and lead times. Ensure compatibility with mating sockets in the Datamate J-Tek family. Check for any recent manufacturing updates or alternative package options that may affect integration into existing designs.

Headers, Male Pins Selection Notes

Select this component for high-density applications requiring robust mechanical stability. The 2mm pitch allows for compact layouts while maintaining reliable electrical performance. Consider the vertical orientation for space-constrained environments where board stacking is necessary.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its push-pull locking mechanism and high reliability. It is designed for demanding environments, offering excellent resistance to vibration and shock. The series provides various configurations to meet diverse connectivity needs.

Headers, Male Pins Replacement Considerations

M80-5405042 is a confirmed substitute part number within the same Datamate J-Tek series. Verify pin count and orientation compatibility before replacement.
