M80-5405042

Headers, Male Pins Overview

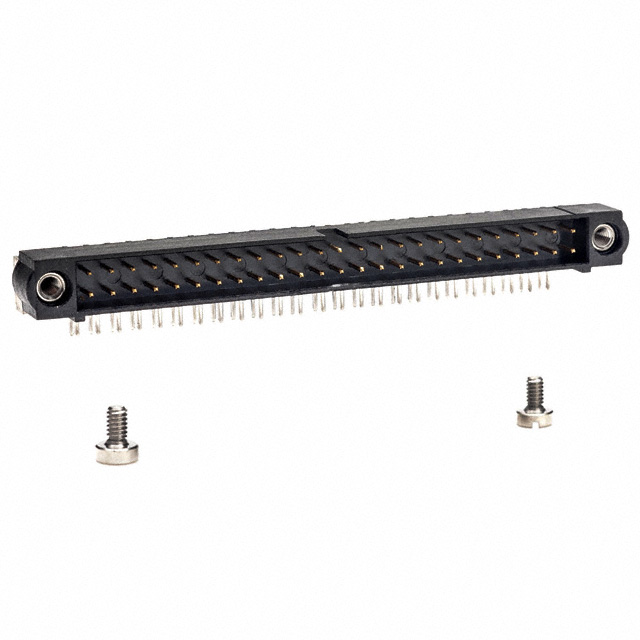

Harwin M80-5405042 is a Datamate J-Tek male header connector with 50 positions in a dual-row configuration. It features a 2.00mm pitch and right-angle through-hole mounting with a 3.00mm tail length. The contacts are tin-plated phosphor bronze, housed in black PPS insulation rated UL94 V-0. Rated at 120V and 3A, it operates from -55°C to +125°C and includes jackscrew locking for secure board-to-board or wire-to-board connections.

Headers, Male Pins Feature Summary

• Jackscrew locking mechanism provides secure mechanical retention
• Right-angle design facilitates compact vertical integration
• Tin-plated contacts ensure reliable soldering performance

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Data communication equipment needing high-density connections
• Automotive electronics utilizing board-to-board interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm contact plating and tail length specifications. Ensure compatibility with mating sockets within the Datamate J-Tek series. Confirm that the right-angle orientation and 3mm tail dimensions meet your PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, dual-row male header is required for rigid board connections. The jackscrew feature is essential for applications subject to vibration or thermal cycling. Verify that the 2.00mm pitch aligns with existing footprint designs and that the 3A current rating suffices for the target circuit load.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, designed for power-to-the-board applications. It complements female socket counterparts like the M80-40 series. The series is characterized by its modular design, allowing for various pin counts and orientations to suit diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek headers with identical 50-position, dual-row, right-angle configurations. Verify matching pitch, tail length, and locking mechanism type before substitution.
