M80-5410642

Headers, Male Pins Overview

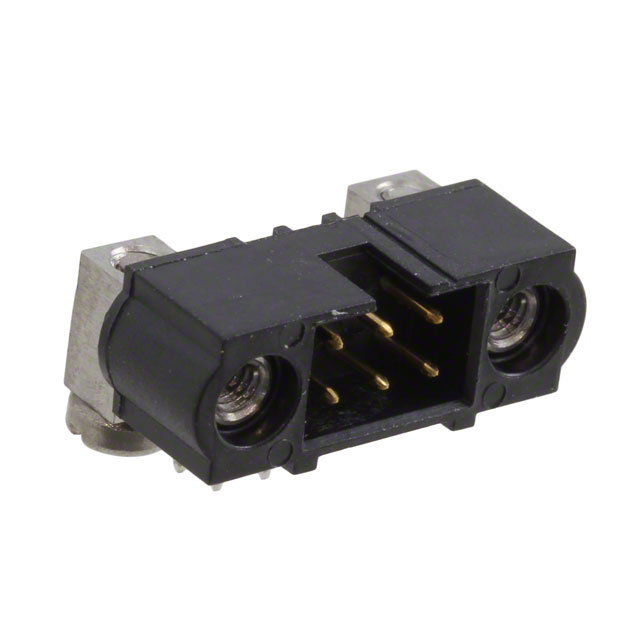

The Harwin M80-5410642 is a Datamate J-Tek male header connector designed for board-to-board and wire-to-board applications. It features a 6-position, dual-row configuration with a 2.00mm pitch. The component utilizes right-angle through-hole mounting with solder termination. Electrical ratings include 120V voltage and 3A current. Contact materials are phosphor bronze with gold plating on mating surfaces and tin on tails. The housing is black PPS with glass fiber reinforcement, rated UL94 V-0. Operating temperature ranges from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Four-finger beryllium copper contact technology ensures high-reliability connections without signal loss.
• Push-turn locking mechanism provides secure mechanical retention during mating cycles.
• Integrated keying slots and mating flanges prevent misalignment and ensure correct orientation.
• Compact right-angle design facilitates dense PCB layout in space-constrained environments.

Headers, Male Pins Applications

• Automotive electronic control units
• Industrial instrumentation interfaces
• Military communication equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official datasheets to confirm tail length and plating variations. Ensure compatibility with corresponding socket counterparts within the Datamate J-Tek series. Confirm that the right-angle orientation matches the PCB footprint requirements. Check for any updated environmental compliance certifications prior to final procurement approval.

Headers, Male Pins Selection Notes

Select this model for applications requiring robust mechanical locking and high-cycle durability. The right-angle form factor is suitable for vertical stacking or edge-connecting scenarios. Verify that the 2.00mm pitch aligns with existing board spacing constraints. Consider the operating temperature range when selecting insulation materials for extreme environment deployments.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek series, known for high-density interconnect solutions. The series supports various configurations including straight and right-angle headers. It is engineered for demanding sectors such as aerospace and defense where reliability is critical. The modular design allows for mixed pin counts and contact options within the same family.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Cross-reference only with other Harwin M80-541xxxx models sharing identical pitch, row count, and locking mechanisms. Ensure mechanical dimensions and electrical ratings match exactly before substitution.

Headers, Male Pins FAQ

What is the locking mechanism type for this connector?

The M80-5410642 uses a push-turn locking mechanism for secure attachment.

Is the connector compatible with standard 2mm pitch sockets?

Yes, it is designed to mate with other Datamate J-Tek connectors featuring a 2.00mm pitch.
