M80-5411242

Headers, Male Pins Overview

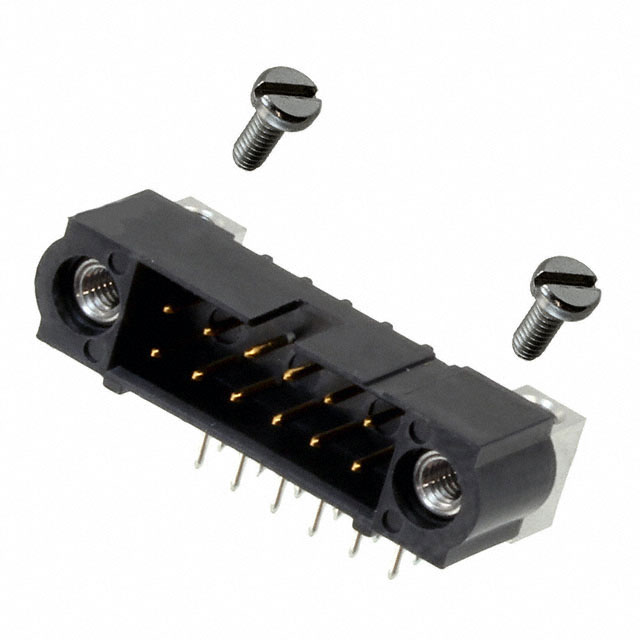

The M80-5411242 is a Datamate J-Tek board-to-board connector from Harwin, designed for horizontal surface-mount applications. It features a male pin configuration with 12 contacts arranged in two rows of six. The component utilizes a 2 mm pitch and includes a 3 mm tail length. It is equipped with jackscrews for secure mating and is rated for 2.2 A current at 800 V. The contact finish thickness is specified at 3.00 µm.

Headers, Male Pins Feature Summary

• Horizontal surface-mount design for compact PCB integration
• Integrated jackscrew mechanism for reliable locking
• Male pin configuration with defined tail length

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact tail length and jack screw configuration. Ensure compatibility with the corresponding female housing regarding pitch and row count. Confirm RoHS compliance status through official manufacturer documentation prior to procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring horizontal mounting orientation and robust mechanical retention via jackscrews. Consider the 2.2 A current rating and 800 V voltage rating against system requirements. Verify that the 3 mm tail dimension fits within the available vertical clearance on the target PCB layout.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek series, which provides high-reliability interconnect solutions. The M80-5411242 specifically addresses needs for horizontal board stacking or edge connections where space efficiency and secure locking are critical parameters.

Headers, Male Pins Replacement Considerations

Cross-reference with other M80-5411242 variants to ensure identical tail length and jack screw presence. Verify pin count and row alignment before substituting.
