M80-5412005

Headers, Male Pins Overview

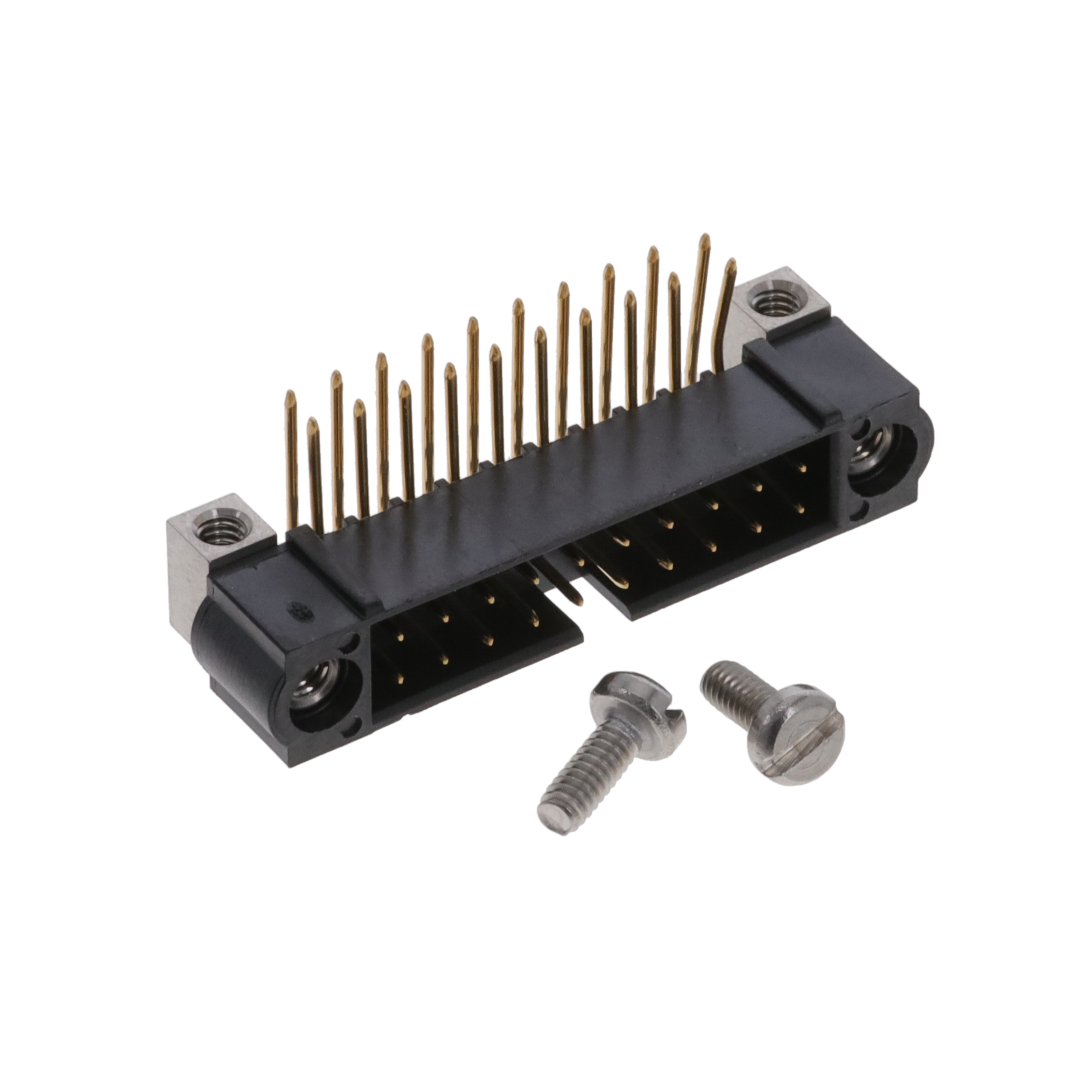

The Harwin M80-5412005 is a Datamate J-Tek series header connector featuring a 2 mm pitch and 20 positions arranged in a dual inline configuration. It utilizes female crimp contacts with solder pin termination for through-board mounting. The component operates within a temperature range of -55°C to +125°C, supports an 800V voltage rating, and includes hex jack screws for secure mating.

Headers, Male Pins Feature Summary

• Incorporates hex jack screw locking mechanisms for reliable connection retention
• Features female crimp contacts designed for secure wire termination
• Constructed with Polyphenylene Sulfide (PPS) housing for thermal stability

Headers, Male Pins Applications

• Industrial control systems requiring high-reliability interconnects
• Test and measurement equipment interfaces
• Automotive electronics applications

Headers, Male Pins Procurement Notes

Verify the specific contact gender designation against official datasheets, as distributor listings may contain conflicting descriptions regarding male or female configurations. Confirm that the hex jack screw variant matches the mechanical requirements for the intended assembly environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 2 mm pitch connector with integrated mechanical locking is required. Ensure compatibility with the mating counterpart's locking mechanism and verify that the 3 A current rating per contact aligns with the circuit design specifications.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, which provides high-density interconnect solutions. The series is characterized by its robust mechanical latching systems and suitability for demanding environments where vibration resistance and secure connections are critical operational requirements.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
