M80-5420605

Headers, Male Pins Overview

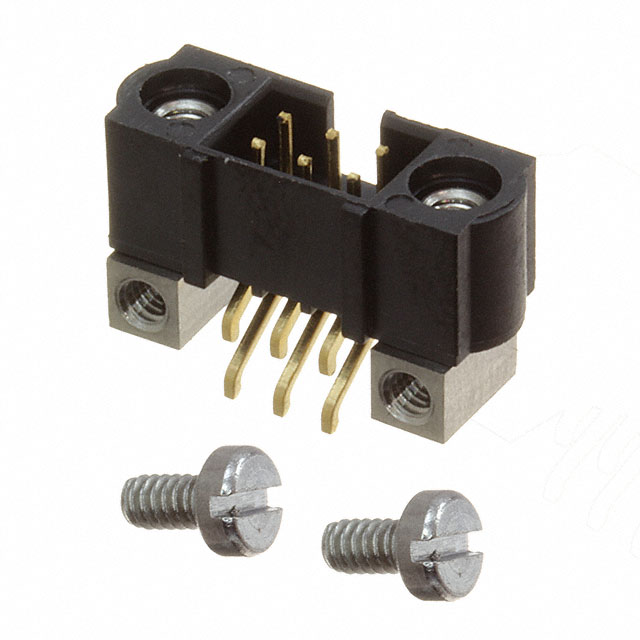

The M80-5420605 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 6-position configuration with a 2.00mm pitch and two rows. Designed for surface mount installation, this right-angle component utilizes solder termination. The contacts are made of brass with gold plating, housed in black polyphenylene sulfide (PPS) insulation. It supports a rated current of 2.2A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board integration
• Gold-plated brass contacts ensuring reliable signal transmission
• Push-pull locking mechanism for secure mating

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Telecommunications equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, housing color, and locking style variations. Ensure compatibility with mating receptacles from the same Datamate J-Tek series. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number with distributor catalogs to avoid confusion with similar right-angle variants.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount male header is required for high-density applications. The 2.00mm pitch allows for compact circuit board layouts. Consider the 2.2A current rating for power distribution needs. Ensure the PCB footprint matches the specified SMD dimensions and that the right-angle orientation fits the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its push-pull locking system and high reliability. The M80-5420605 specifically addresses the need for horizontal surface mount connections in space-constrained environments. It complements other Datamate components like sockets and cables to form complete interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 6-position, 2-row, 2.00mm pitch, right-angle SMT specification. Verify contact material and plating thickness. No direct cross-brand equivalents are officially confirmed; consider Harwin's own variant numbers with different suffixes for minor mechanical differences.
