M80-5420642

Headers, Male Pins Overview

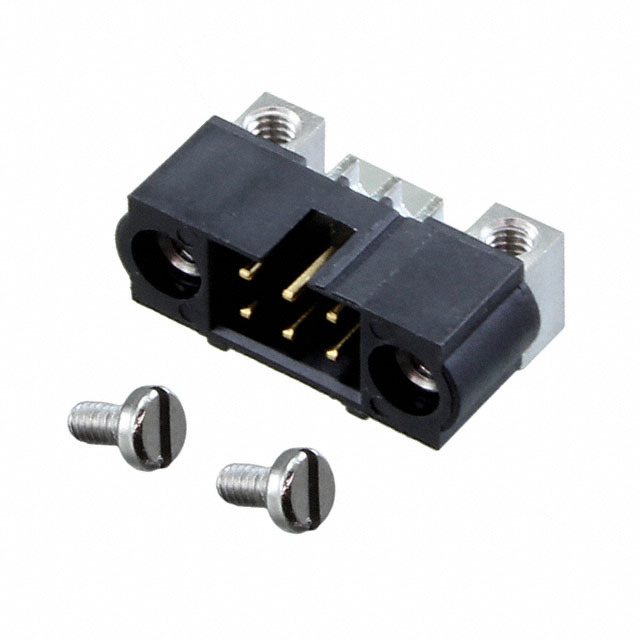

The Harwin M80-5420642 is a Datamate J-Tek series header connector featuring six positions across two rows with a 2.00mm pitch. Designed for surface mount installation, it utilizes male pin contacts made of phosphor bronze with gold plating. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. It supports board-to-board or cable applications with a rated voltage of 120V and current capacity of 3A. Operating temperatures range from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount termination method for automated PCB assembly
• Push-turn locking mechanism ensures secure mating retention
• Integrated keying slot and mating flange for precise alignment
• High-temperature resistant PPS insulation material

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronic modules
• Cable-to-board connections requiring surface mount reliability
• Industrial control systems operating within extended temperature ranges
• Automotive electronics utilizing push-turn locking mechanisms

Headers, Male Pins Procurement Notes

Verify the specific suffix code to confirm surface mount orientation and contact plating specifications against project requirements. Ensure compatibility with mating socket components from the same Datamate J-Tek family. Confirm that the selected variant meets the required thermal and electrical ratings for the intended application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when surface mount technology is required for a 6-position, 2-row connection. The 2.00mm pitch allows for dense circuit layouts while maintaining reliable signal integrity. Consider the push-turn locking feature if vibration resistance is critical. Verify that the 3A current rating and 120V voltage limit align with the system's power distribution needs.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for its modular design and robust locking capabilities. The M80-54 prefix indicates a surface mount header configuration. It is part of a broader ecosystem of compatible sockets and accessories designed for high-reliability interconnect solutions in demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Harwin Datamate J-Tek headers with identical pin count, row configuration, and surface mount termination. Verify mechanical dimensions and locking mechanism compatibility before substitution.

Headers, Male Pins FAQ

What is the locking mechanism type for this connector?

The M80-5420642 uses a push-turn locking mechanism to secure the mating connection.

Is this connector suitable for high-temperature environments?

Yes, it operates within a temperature range of -55°C to +125°C using heat-resistant PPS insulation.
