M80-5421005

Headers, Male Pins Overview

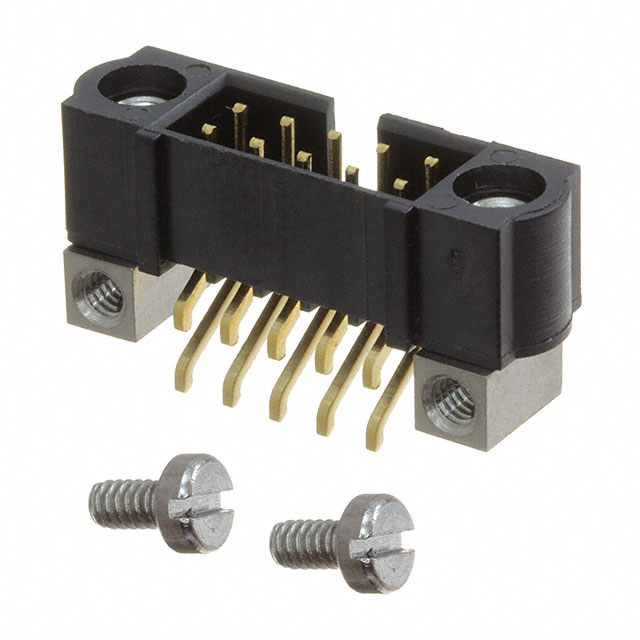

The M80-5421005 is a Datamate J-Tek male header connector designed for surface mount technology. It features a 10-position configuration with a 2mm pitch, arranged in a dual inline layout (5+5). The component utilizes gold-plated contacts and includes integrated jackscrews for secure board mounting. It is rated for high-reliability applications within the Power to the Board series.

Headers, Male Pins Feature Summary

• Surface mount horizontal orientation for compact PCB integration
• Integrated jackscrew mechanism for enhanced mechanical retention
• Gold-plated contact surfaces for reliable signal transmission
• Dual inline pin arrangement supporting high-density connections

Headers, Male Pins Applications

• Industrial automation control systems
• Process automation instrumentation
• High-reliability electronic assemblies
• Board-to-board interconnects requiring secure locking

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure compatibility with required jack screw lengths and board thicknesses. Confirm that the surface mount footprint matches the design guidelines provided in the official Harwin documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a robust, locked connection is required for surface-mounted headers. The integrated jackscrews provide superior vibration resistance compared to standard SMT connectors. Ensure the mating connector belongs to the same Datamate J-Tek family to guarantee proper alignment and electrical continuity.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek series, known for secure interconnect solutions. It serves as a male header variant within the Power to the Board portfolio, offering a balance of high current capacity and mechanical stability for demanding industrial environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 10-position counts and surface mount footprints. Verify that any alternative part supports the same jackscrew mounting style and maintains the 2mm pitch specification.
