M80-5422642

Headers, Male Pins Overview

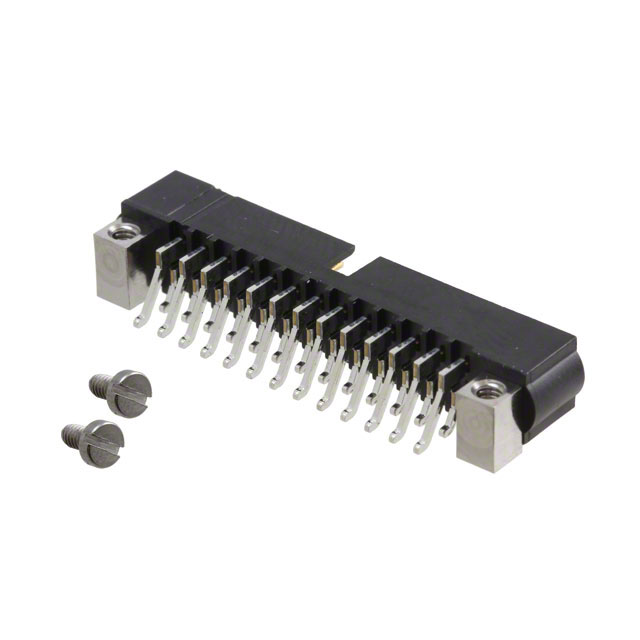

The Harwin M80-5422642 is a Datamate J-Tek power-to-board connector header designed for surface-mount installation. It features a right-angle configuration with a 2 mm pitch and two rows of contacts, totaling 26 positions (13+13). The male pins are constructed from brass with gold plating, housed in a black polyphenylene sulfide (PPS) insulator. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55 °C to +125 °C. The component utilizes solder terminals for secure PCB attachment.

Headers, Male Pins Feature Summary

• High-reliability design engineered to withstand vibration, shock, and extreme temperature conditions.
• Gold-plated brass contacts ensure stable electrical performance in demanding environments.
• Right-angle surface-mount footprint facilitates compact board layout integration.

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics subject to mechanical stress
• Consumer devices needing reliable power distribution

Headers, Male Pins Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm pin count and tail length variations. Ensure compatibility with mating female connectors within the same Datamate J-Tek series. Confirm RoHS compliance status through official documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model for applications necessitating high-density power connections on limited board space. The right-angle SMT design optimizes vertical clearance while maintaining structural integrity. Consider the 2 mm pitch constraints when designing adjacent component placement and thermal management strategies.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for high-performance 2 mm pitch interconnects. The M80 series specifically targets power-to-board applications, offering superior durability compared to standard headers. It complements other Harwin connectors by providing standardized mating interfaces across various industrial sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes include Harwin part numbers sharing the M80-542 base prefix with matching 26-position configurations. Verify identical pitch, row count, and mounting style before substitution. Cross-reference mating female connector specifications to ensure mechanical and electrical compatibility.

Headers, Male Pins FAQ

What is the contact material composition?

The contacts are made of brass with a gold plating finish to ensure conductivity and corrosion resistance.

Is the connector suitable for high-vibration environments?

Yes, the Datamate J-Tek series is specifically designed to withstand vibration, shock, and temperature extremes.
