M80-5431442

Headers, Male Pins Overview

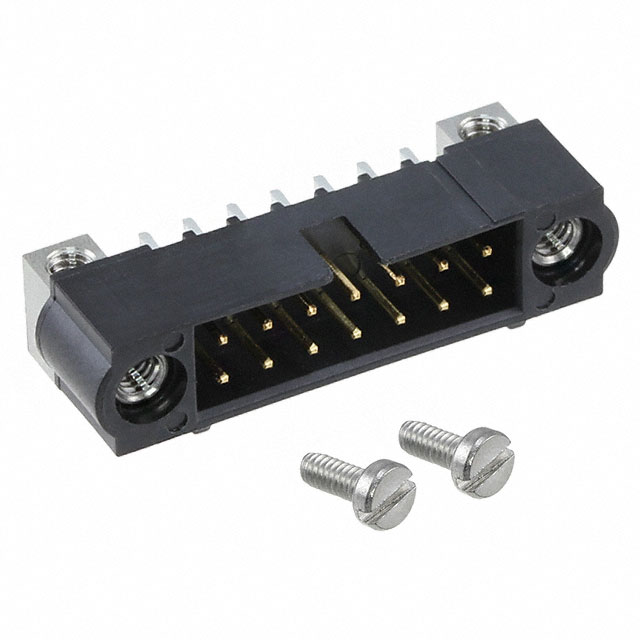

The M80-5431442 is a Datamate J-Tek series board-to-board and wire-to-board connector manufactured by Harwin. It features a male pin configuration with 14 positions arranged in a dual-row layout. The component utilizes a 2 mm pitch and is designed for surface mount installation at a right angle. Electrical specifications include a current rating of 3 A and an operating temperature range from -55 C to +125 C. The housing is constructed from black Polyphenylene Sulfide (PPS), while contacts are gold-plated brass.

Headers, Male Pins Feature Summary

• High mechanical reliability with 100G shock, 40G bump, and 10G vibration resistance capabilities.
• Right-angle surface mount design facilitates compact PCB integration.
• Dual-row shrouded header structure ensures secure mating alignment.

Headers, Male Pins Applications

• Industrial control systems requiring high vibration resistance
• Automotive electronics modules
• Compact consumer electronic devices

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and latch type. Ensure compatibility with the mating female socket within the same Datamate J-Tek family. Confirm RoHS compliance status through official documentation before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this part for applications demanding robust mechanical performance under shock and vibration. The right-angle surface mount form factor suits space-constrained designs. Verify that the 3 A current rating meets circuit requirements and that the 2 mm pitch aligns with the target PCB footprint.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek line, which emphasizes durability in harsh environments. The series supports various mounting styles and contact configurations. The M80-5431442 specifically addresses needs for reliable right-angle interconnections in dense electronic assemblies.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-reference with other Harwin Datamate J-Tek variants only if they match the identical 14-position, right-angle, surface-mount specification.
