M80-5433442

Headers, Male Pins Overview

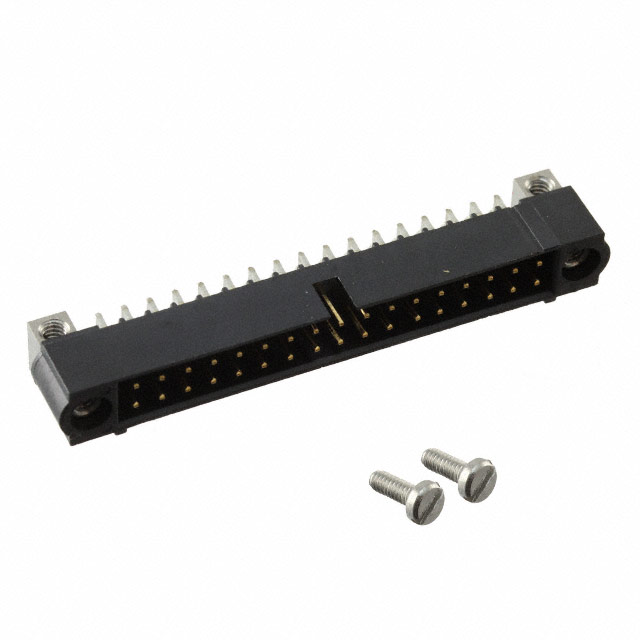

The M80-5433442 is a Datamate J-Tek male header connector featuring a 2mm pitch and 34 positions in a dual inline configuration. Designed for surface mount assembly, it utilizes right-angle termination with gold-plated phosphor bronze contacts housed in black polyphenylene sulfide insulation. The component supports a rated current of 3A and operates within a temperature range of -55°C to 125°C, offering high reliability through Harwin's four-finger contact technology.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without signal loss.
• Robust mechanical performance including resistance to 100G shock, 40G bump, and 10G vibration.
• Surface mount right-angle design facilitates compact board-to-board or cable interconnections.

Headers, Male Pins Applications

• Automotive electronics systems
• Military and defense equipment
• General industrial control applications

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count, orientation, and termination style. Ensure compatibility with mating female receptacles from the same Datamate series. Confirm RoHS compliance status via the manufacturer datasheet before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a high-density 34-position surface mount male header is required. It is suitable for environments demanding resistance to shock and vibration. Verify that the PCB layout accommodates the right-angle profile and that the mating connector matches the 2mm pitch specification.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for modular connectivity solutions. The M80-54 series specifically addresses surface mount needs with right-angle configurations. It complements other Harwin connectors by providing standardized 2mm spacing for reliable signal and power transmission in constrained spaces.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 2mm pitch, 34-position count, SMD right-angle orientation, and male contact type.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with gold plating to ensure conductivity and corrosion resistance.

Is this connector suitable for high-vibration environments?

Yes, it is designed to withstand 10G vibration, 40G bump, and 100G shock, making it suitable for rugged applications.
