M80-5502005

Headers, Male Pins Overview

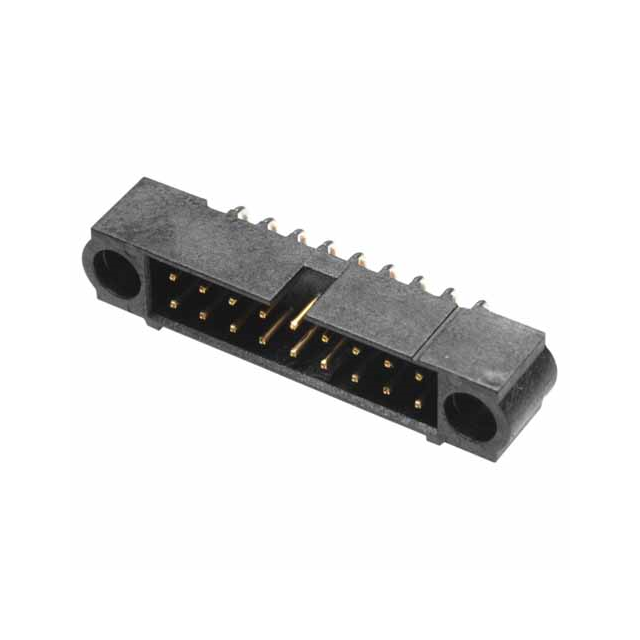

The M80-5502005 is a Datamate J-Tek header connector manufactured by Harwin Inc. It features a 2-row, 18-position configuration with a 2 mm pitch. The component utilizes male pin contacts made of phosphor bronze with gold plating. Designed for through-hole mounting, it includes jackscrew locking mechanisms and shrouded housing constructed from black polyphenylene sulfide (PPS). The connector supports a current rating of 3 A and operates within a temperature range of -55 C to +125 C.

Headers, Male Pins Feature Summary

• Incorporates jackscrew locking mechanisms for secure mating retention
• Features shrouded housing design to ensure correct alignment during assembly
• Utilizes gold-plated phosphor bronze contacts for reliable signal transmission

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• Automotive electronics applications

Headers, Male Pins Procurement Notes

Verify the specific contact count and orientation against project requirements before ordering. Confirm that the through-hole mounting style and jackscrew locking mechanism are compatible with the target PCB layout and enclosure constraints. Ensure the operating temperature range meets the environmental specifications of the intended application environment.

Headers, Male Pins Selection Notes

Select this model when a high-reliability, locked header connection is required for board-to-board or cable-to-board interfaces. The Datamate J-Tek series offers a compact form factor suitable for dense packaging. Consider the mechanical strength provided by the jackscrew system if vibration resistance is a critical design parameter for the electronic assembly.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for its modular design and high-density capabilities. The series provides various options for row counts, contact materials, and locking styles to suit diverse electronic integration needs across multiple industries.

Headers, Male Pins Replacement Considerations

M80-5502005-DG is listed as an alternative part number variant.
