M80-5L10222M5-01-333-01-333

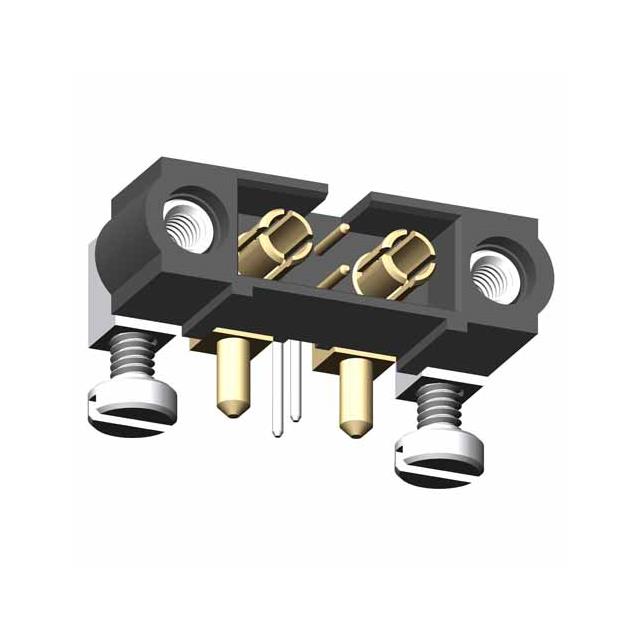

M80-5L10222M5-01-333-01-333 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is 2+2 POS. MALE SIGNAL+POWER HORIZ. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5L10222M5-01-333-01-333

• Description：2+2 POS. MALE SIGNAL+POWER HORIZ
• Series：Datamate Mix-Tek
• Mfr：Harwin Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.118" (3.00mm)
• Number of Positions：4 (2 + 2 Power)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Threaded
• Contact Length - Mating：-
• Contact Length - Post：0.118" (3.00mm)
• Overall Contact Length：-
• Insulation Height：0.238" (6.05mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：29.5µin (0.75µm)
• Contact Finish - Post：Tin-Lead
• Contact Material：Copper Alloy, Phosphor Bronze
• Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Jackscrews, Keying Slot, Mating Flange
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2.2A, 20A
• Voltage Rating：800VAC/DC

Headers, Male Pins datasheet and documents for M80-5L10222M5-01-333-01-333

Explore related parts through Rectangular Connectors, Connectors, Interconnects, all product categories, ChipApex homepage.
