M80-5L10405M5-02-333-00-000

Headers, Male Pins Overview

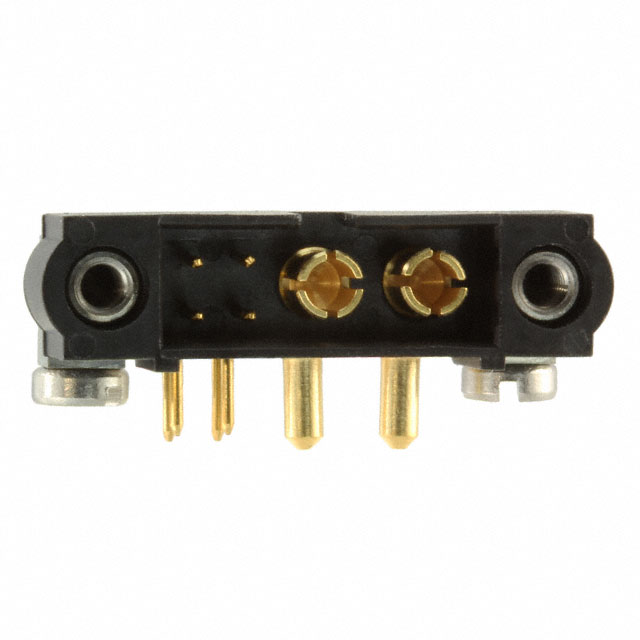

The Harwin M80-5L10405M5-02-333-00-000 is a Datamate Mix-Tek board connector header featuring 6 positions (4 signal + 2 power) with a 2.00mm pitch. It utilizes a right-angle through-hole termination style and includes locking jack screws for secure attachment. The component operates within a temperature range of -55°C to 125°C, uses black glass-filled PPS insulation rated UL94 V-0, and supports mating stack heights of 7.3mm or 9.75mm.

Headers, Male Pins Feature Summary

• Integrates mixed signal and power contacts in a compact 6-position arrangement
• Provides secure mechanical connection via integrated jack screw locking mechanism
• Features right-angle orientation for efficient board space utilization

Headers, Male Pins Applications

• Industrial control systems requiring robust mixed-signal connectivity
• Automotive electronics demanding high vibration resistance
• Medical devices needing reliable power and data transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm terminal type, contact plating, and housing color. Ensure compatibility with mating plug series M80-4T or M80-4C. Confirm that the required jack screw hardware is included or ordered separately as per the manufacturer's assembly guidelines.

Headers, Male Pins Selection Notes

Select this part when right-angle mounting and mixed signal/power capabilities are required. The 2.00mm pitch allows for dense layouts. Consider the 7.3mm or 9.75mm stack height options based on PCB thickness and enclosure constraints. Ensure the mating connector supports the same current ratings and environmental specifications.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate Mix-Tek family, designed for high-reliability applications. The M80 series is known for its modular design, allowing customization of signal and power combinations. This specific header variant integrates both types into a single right-angle package for streamlined assembly.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80 series headers with identical pin counts and pitch. Verify mating compatibility with existing plugs. Cross-brand replacements require careful evaluation of mechanical dimensions, electrical ratings, and environmental performance to ensure functional equivalence.
