M80-5L10405M5-02-333-02-333

Headers, Male Pins Overview

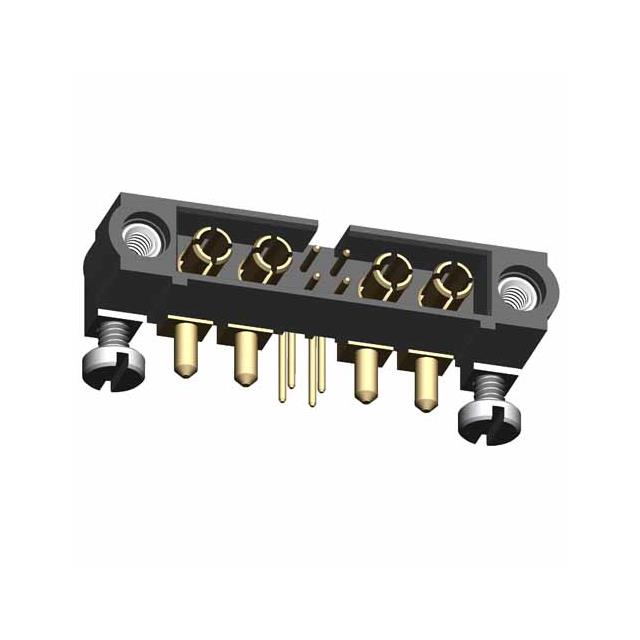

The M80-5L10405M5-02-333-02-333 is a Datamate Mix-Tek male connector header manufactured by Harwin Inc. It features an 8-position configuration, specifically designed with 4 signal pins and 4 power pins. The component utilizes a horizontal through-board mounting style with a 2.00mm (0.079 inch) pitch. It incorporates jackscrew locking mechanisms for secure attachment. The connector is RoHS compliant and constructed with black insulator material.

Headers, Male Pins Feature Summary

• Integrates mixed signal and power contacts within a single compact housing
• Employs jackscrew locking systems to ensure robust mechanical retention
• Supports horizontal through-board installation for space-constrained designs

Headers, Male Pins Applications

• Industrial control modules requiring mixed signal/power connections
• Embedded systems with limited vertical clearance
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific pin count configuration of 4 signal and 4 power positions against system requirements. Confirm that the horizontal orientation and jackscrew locking mechanism align with the assembly design. Ensure compatibility with mating female connectors in the Datamate Mix-Tek series. Check RoHS compliance status if required by regulatory standards.

Headers, Male Pins Selection Notes

Select this part when both signal integrity and high-current power delivery are needed in a single interface. The horizontal form factor is suitable for applications where vertical height is restricted. The jackscrew feature provides superior vibration resistance compared to standard press-fit headers. Consider the 2.00mm pitch for trace routing density on the PCB.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate Mix-Tek family, which combines signal and power contacts in one connector system. The M80 series is known for its durability and reliability in harsh environments. This specific model represents a male header variant designed for board-to-board or cable-to-board interconnections.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Alternative solutions may require custom ordering from Harwin or redesigning the connector footprint to accommodate different pin counts or orientations.
