M80-5L10405M5-04-333-00-000

Headers, Male Pins Overview

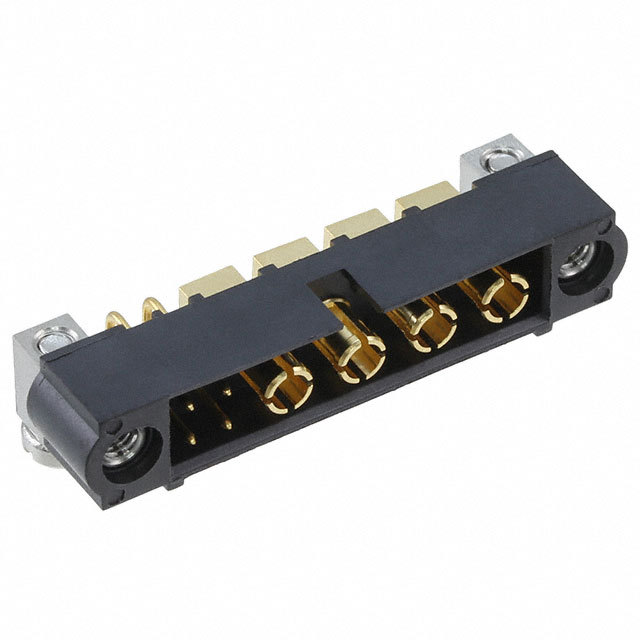

The Harwin M80-5L10405M5-04-333-00-000 is a Datamate Mix-Tek board connector featuring an angled header configuration with 8 positions. It utilizes a 2mm pitch and supports mixed Power/Signal contact arrangements. The component employs Phosphor Bronze contacts with Gold plating for reliable electrical performance. Designed for high-reliability applications, it offers robust mechanical stability suitable for demanding industrial environments.

Headers, Male Pins Feature Summary

• Angled header design facilitates compact board layout integration
• Mixed Power/Signal contact arrangement enables combined functionality
• Gold-plated Phosphor Bronze contacts ensure durable conductivity

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal/power connections
• High-reliability embedded electronics assemblies
• Compact instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific pin count and orientation against schematic requirements before procurement. Confirm that the mixed Power/Signal configuration aligns with the target circuit design. Ensure compatibility with mating receptacles from the same Datamate series to maintain interface integrity.

Headers, Male Pins Selection Notes

Select this model when an angled connection is necessary to save vertical space or improve cable routing. The 2mm pitch allows for dense packing of I/O lines. Consider the mixed contact type if both power delivery and data transmission are required on a single connector footprint.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate Mix-Tek series, known for high-density interconnect solutions. The M80 prefix indicates the standard housing size within this family. It is designed to mate with corresponding female receptacles to form secure board-to-board or board-to-cable links.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 8-position count, 2mm pitch, and angled orientation. Verify that alternative parts support the same mixed Power/Signal contact arrangement. Ensure the replacement maintains the gold-plated Phosphor Bronze contact specification for equivalent performance.
