M80-5L10405M5-06-333-00-000

Headers, Male Pins Overview

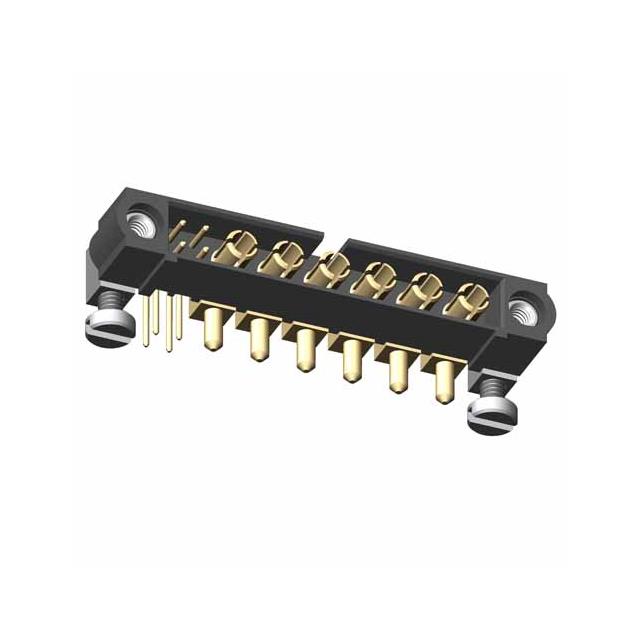

The M80-5L10405M5-06-333-00-000 is a Datamate Mix-Tek board connector header manufactured by Harwin. It features a right-angle through-hole mounting configuration with six positions, specifically configured as four signal contacts and two power contacts. The connector utilizes a 2.00mm pitch for both mating and row spacing. It employs gold-plated round pin terminals housed in black glass-filled polyphenylene sulfide insulation. Key mechanical attributes include a locking mechanism and compatibility with jack screws for secure attachment.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for vertical board integration
• Mixed-signal capability with dedicated power contact positions
• Locking feature ensures stable connection integrity

Headers, Male Pins Applications

• High-reliability backplane interconnections
• Industrial control system board-to-board connections
• Telecommunications equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact terminal type, contact arrangement, and housing color. Ensure that the selected variant matches the required pitch and mounting orientation for the target PCB layout. Cross-reference the official Harwin datasheet to validate compliance with RoHS standards and material specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, locked header with mixed signal and power capabilities is required. The 2.00mm pitch suits applications needing robust connectivity without excessive density. Consider the through-hole termination method for superior mechanical strength compared to surface mount alternatives in high-vibration environments.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate Mix-Tek series, designed for demanding industrial and telecommunications applications. The series combines standard signal contacts with higher-current power contacts within a single compact housing. The M80 coding system allows for extensive customization of contact types, arrangements, and accessories to meet specific engineering requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes are limited due to the proprietary nature of the Datamate system. Verify compatibility only with other Harwin Datamate Mix-Tek headers sharing identical pitch, contact count, and locking mechanisms. Generic connectors do not guarantee mating compatibility or mechanical retention.
