M80-5L10442MC

Headers, Male Pins Overview

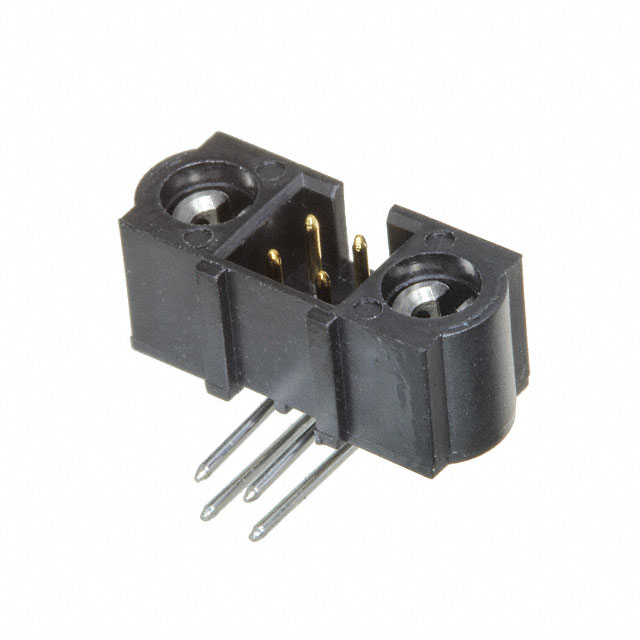

The Harwin M80-5L10442MC is a Datamate J-Tek series board-to-board connector header. It features a 4-position configuration with a 2.00mm pitch and horizontal right-angle mounting style. The component utilizes through-hole termination for PCB attachment. Contacts are constructed from beryllium copper with gold plating, housed in black polyphenylene sulfide (PPS) insulation reinforced with glass fiber. It supports a rated current of 2.2A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without signal loss.
• Datamate J-Tek design incorporates push-pull locking mechanisms for secure mating.
• Horizontal right-angle form factor facilitates compact board-to-board interconnections.

Headers, Male Pins Applications

• Compact electronic device interconnects
• Industrial control system boards
• Medical instrumentation circuitry

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official datasheets to confirm tail length and packaging variations. Ensure compatibility with corresponding female sockets within the same Datamate family. Confirm RoHS compliance status if required by project specifications. Cross-reference manufacturer part numbers with distributor listings to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this model for applications requiring horizontal right-angle connections with robust mechanical locking. The 2.00mm pitch suits dense board layouts. Verify that the mating socket matches the 4-position count and compatible locking mechanism. Consider thermal ratings when designing for high-current environments.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for high-density interconnect solutions. It complements other headers and sockets in the series, enabling modular system designs. The horizontal orientation distinguishes it from vertical variants, optimizing space in constrained enclosures.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Compatible alternatives must match the 4-position count, 2.00mm pitch, and horizontal right-angle geometry within the Datamate ecosystem.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from beryllium copper with gold plating to ensure conductivity and durability.

Does this connector feature a locking mechanism?

Yes, it utilizes the Datamate push-pull locking system for secure mating and retention.
