M80-5L10605M5-02-333-00-000

Headers, Male Pins Overview

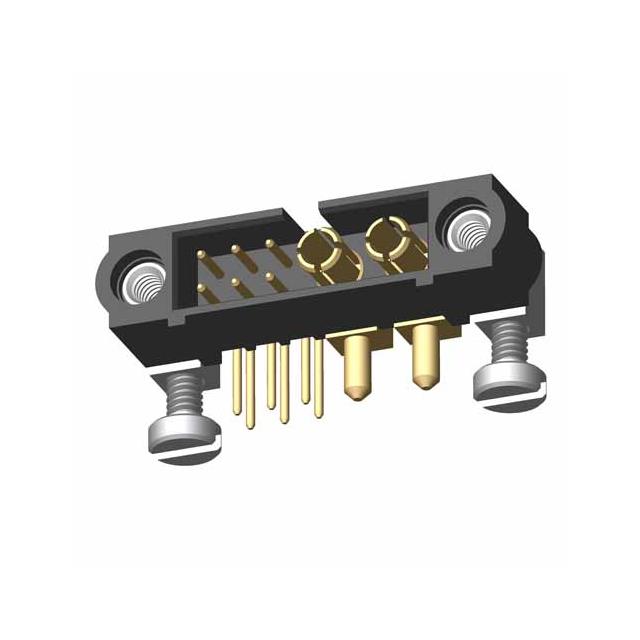

The Harwin M80-5L10605M5-02-333-00-000 is a mixed technology board-to-board connector from the Datamate Mix-Tek series. It features a male header with through-hole termination, offering 8 positions (6 signal + 2 power). The design utilizes a 2.00mm pitch for signal contacts and a 4.00mm pitch for power contacts. Rated at 2.2A for signals and 20A for power, it supports up to 800VAC/DC. The housing is black PPS with glass fiber reinforcement, UL94 V-0 rated. Contacts are phosphor bronze with gold plating on mating surfaces.

Headers, Male Pins Feature Summary

• Combines 2.00mm pitch signal contacts with 4.00mm pitch power contacts in a single housing
• Push-pull locking mechanism ensures secure connection retention
• High current capacity of 20A for dedicated power pins
• Robust construction using glass-filled polyphenylene sulfide insulation

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power routing
• Automotive electronics modules
• Telecommunications equipment
• Medical device interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pinout configuration and contact arrangement. Ensure compatibility with corresponding female receptacles or cable assemblies within the Datamate Mix-Tek family. Check for RoHS compliance status if required by project specifications. Confirm that the 2.00mm and 4.00mm mixed pitch requirements align with the PCB layout design.

Headers, Male Pins Selection Notes

Select this component when both high-density signal transmission and high-current power delivery are needed in a compact form factor. The mixed pitch design allows for optimized spacing between sensitive signals and power lines. Consider the 800V rating for applications requiring higher voltage isolation. Evaluate the mechanical locking style against vibration and shock requirements of the target environment.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek/Mix-Tek family, known for high reliability in harsh environments. The M80 prefix indicates the standard series. The '5' denotes the male header type, while 'L' signifies the mixed technology variant. This series is widely used in industries demanding robust connectivity solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Harwin Datamate Mix-Tek headers with matching 8-position count and mixed pitch specifications. Verify that any alternative maintains the same 2.00mm/4.00mm pitch combination and electrical ratings. Cross-referencing with Harwin's official replacement guide is recommended.
