M80-5L10605M7-06-333-00-000

Headers, Male Pins Overview

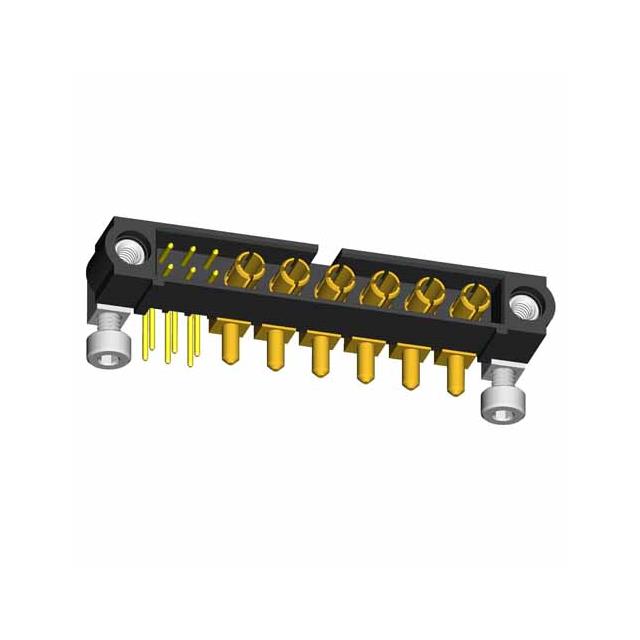

The M80-5L10605M7-06-333-00-000 is a Harwin Datamate Mix Tek header connector featuring 12 positions arranged in a dual-row configuration. It utilizes through-hole termination with right-angle mounting for board-to-cable applications. The connector supports mixed signal and power connections, rated at 2.2A for signal and 20A for power circuits. It operates within a voltage range of up to 800VAC/DC. The housing is black PPS, and contacts are gold-plated phosphor bronze.

Headers, Male Pins Feature Summary

• Supports mixed signal and power interconnections within a single connector assembly
• Features right-angle through-hole mounting for compact board integration
• Includes keying slots and mating flanges for secure alignment

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal/power interfaces
• Medical equipment with high-voltage isolation needs
• Automotive electronics utilizing robust rectangular connectors

Headers, Male Pins Procurement Notes

Verify the specific pinout configuration for signal versus power assignments before integration. Confirm that the right-angle orientation matches the PCB layout constraints. Ensure the 800V rating aligns with system insulation requirements. Cross-reference the contact current ratings against actual load profiles to prevent thermal issues during operation.

Headers, Male Pins Selection Notes

Select this model when both low-current data lines and high-current power feeds are required in a single connection point. The right-angle design aids in space-constrained enclosures. Consider the 20A power rating for heavy loads while maintaining 2.2A signal integrity. Verify compatibility with corresponding Datamate J-Tek or S-Tek receptacles.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate Mix Tek series, designed for versatile interconnect solutions. It combines the reliability of the Datamate platform with mixed circuit capabilities. The part number indicates a 12-position header with specific housing and contact configurations tailored for demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate Mix Tek headers with matching 12-position layouts. Verify equivalent voltage and current ratings. Check mechanical dimensions for right-angle through-hole mounting compatibility. Ensure identical keying options to maintain mating alignment.
