M80-5L10622MC

Headers, Male Pins Overview

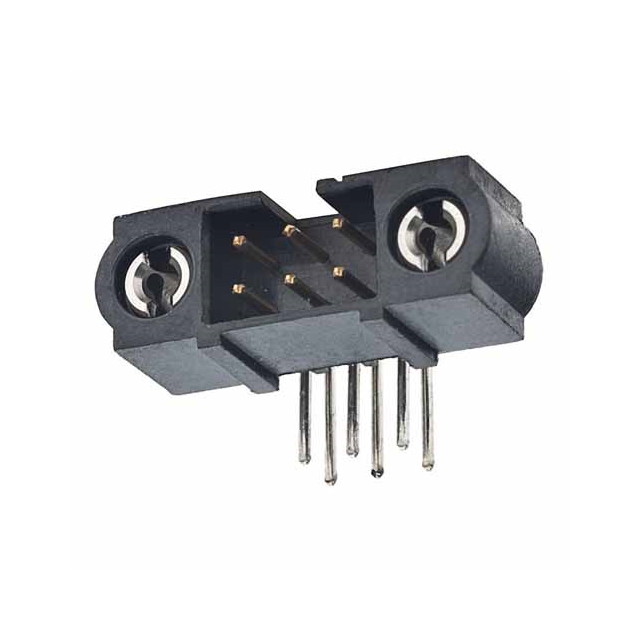

The M80-5L10622MC is a Datamate J-Tek series rectangular header connector manufactured by Harwin Inc. It features a vertical right-angle board-to-board or cable mounting style with six positions in a dual-row configuration. The connector utilizes a 2.00mm pitch and employs phosphor bronze contacts with gold plating for mating surfaces and tin plating for the tail. Designed for through-hole termination, it offers a push-turn locking mechanism and includes keying and flange features for secure assembly.

Headers, Male Pins Feature Summary

• Right-angle vertical design facilitates compact board stacking and space-constrained layouts.
• Push-turn locking system ensures secure mechanical retention during vibration.
• Gold-plated contacts provide reliable signal transmission and corrosion resistance.

Headers, Male Pins Applications

• Compact electronic device interconnects
• Industrial control panel wiring
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific orientation suffix 'L' confirms the right-angle configuration against schematic requirements. Ensure the 2.00mm pitch matches the PCB footprint. Confirm that the push-turn locking mechanism is compatible with the mating socket's release method to prevent installation errors.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for a six-position circuit. The Datamate J-Tek series provides high reliability in harsh environments. Consider the insulation height of 5.60mm for clearance constraints. Verify compatibility with the mating female connector from the same series.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnect solutions. The M80-5L10622MC specifically addresses needs for angled connections where standard vertical headers would exceed height limits. It complements other M80 series components for complete system integration.

Headers, Male Pins Replacement Considerations

M80-5T10642MC is a parameter-equivalent alternative within the same series but features a straight vertical orientation rather than a right-angle design. Substitution requires PCB layout modification to accommodate the different physical profile.
