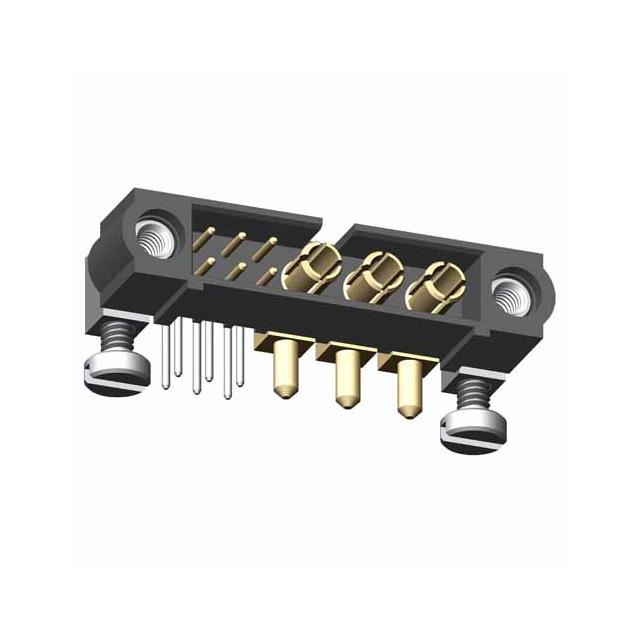

M80-5L10642M5-03-333-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is 6+3 POS. MALE SIGNAL+POWER HORIZ. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for M80-5L10642M5-03-333-00-000
- Description：6+3 POS. MALE SIGNAL+POWER HORIZ
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：9 (6 + 3 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.238" (6.05mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Headers, Male Pins datasheet and documents for M80-5L10642M5-03-333-00-000
Headers, Male Pins Overview
The Harwin M80-5L10642M5-03-333-00-000 is a 9-position right-angle male header from the Mix Tek range. It features 6 signal pins and 3 power pins, with a voltage rating of 800VAC/DC. The contact finish thickness on posts is 12.0µin (0.30µm). Current ratings are specified as 2.2A for signal contacts and 20A for power contacts.
Headers, Male Pins Feature Summary
- Right-angle male header configuration
- Mixed signal and power pin arrangement
- High voltage rating capability
Headers, Male Pins Applications
- Industrial control systems
- Power distribution modules
- Signal processing interfaces
Headers, Male Pins Procurement Notes
Verify part authenticity through authorized Harwin distributors or direct manufacturer channels. Confirm RoHS compliance status and specific current/voltage ratings match application requirements. Check for obsolescence notices or lifecycle changes before finalizing procurement decisions.
Headers, Male Pins Selection Notes
Select this component when right-angle mounting is required for mixed signal/power applications. Ensure PCB layout accommodates the 9-position spacing and right-angle profile. Verify that the 800VAC/DC rating exceeds maximum circuit voltages and that current demands stay within 2.2A and 20A limits respectively.
Headers, Male Pins Part Context
Part of Harwin's Mix Tek connector series, designed for high-density board-to-board connections. Combines signal integrity with power handling in a single compact housing. Right-angle design saves vertical space while maintaining reliable electrical performance.
Headers, Male Pins Replacement Considerations
No publicly confirmed substitute part numbers identified. Consult Harwin technical support for compatible alternatives if this specific configuration becomes unavailable.
