M80-5L10642MC

Headers, Male Pins Overview

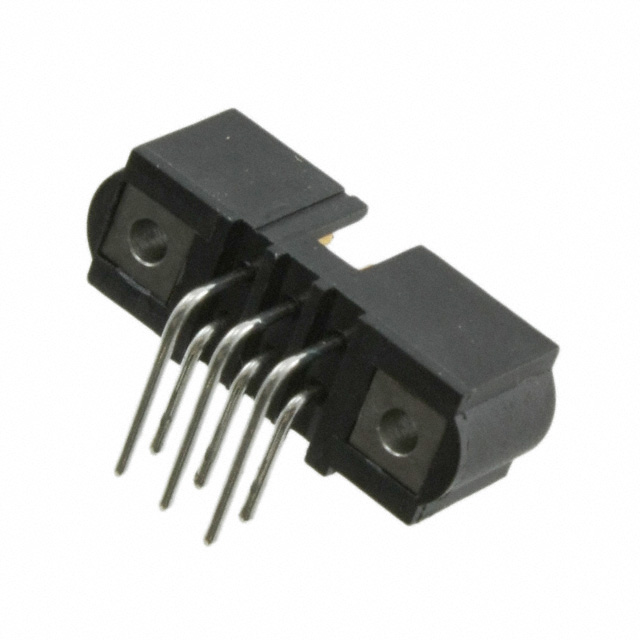

The M80-5L10642MC is a Datamate J-Tek series board connector manufactured by Harwin Inc. It features a right-angle through-hole header with six male pins arranged in two rows of three. The connector utilizes a 2.00mm pitch and incorporates 101Lok bayonet receptacles for mating. Contact areas are gold-plated, while terminations are tin-plated on phosphor bronze contacts. It operates within a temperature range of -55°C to 121°C, rated at 120V and 2.2A.

Headers, Male Pins Feature Summary

• Incorporates 101Lok bayonet locking mechanism for secure mating
• Utilizes gold-plated contact surfaces for reliable signal transmission
• Features right-angle through-hole termination style

Headers, Male Pins Applications

• Board-to-board interconnections
• Panel mount applications requiring angled access
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to ensure compatibility with required mating receptacles. Confirm that the right-angle orientation and pin configuration meet the design specifications. Check for any updated environmental compliance certifications or packaging variations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is necessary for space-constrained designs. Ensure the mating interface supports the 101Lok bayonet system. Verify that the current and voltage ratings align with the application requirements. Consider the thermal performance limits during operation.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek family, known for high-density interconnect solutions. The M80-5L1 base product line provides robust connectivity options. This specific variant offers a compact form factor suitable for dense circuit layouts.

Headers, Male Pins Replacement Considerations

Compatible mating parts include 101Lok bayonet receptacles from the same series. Verify pin count and pitch compatibility when selecting substitutes.

Headers, Male Pins FAQ

What type of locking mechanism does this connector use?

It uses the 101Lok bayonet locking mechanism for fast and simple mating.

Is this connector suitable for high-temperature environments?

Yes, it operates within a temperature range of -55°C to 121°C.
