M80-5L10642MD

Headers, Male Pins Overview

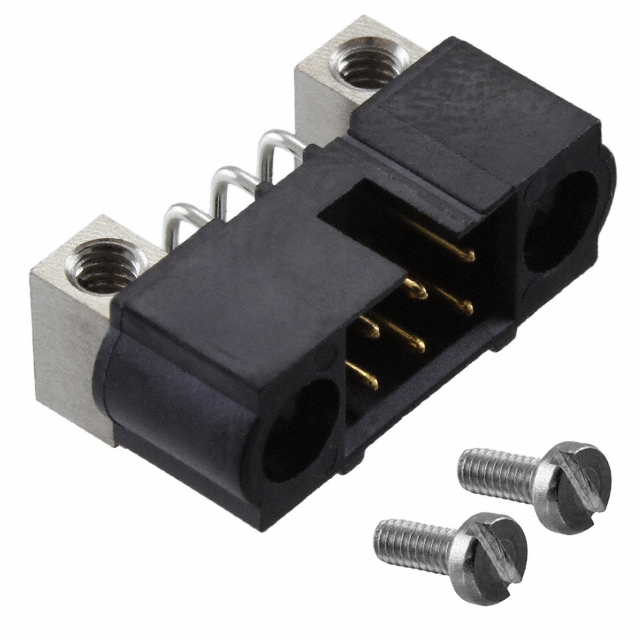

The M80-5L10642MD is a Datamate J-Tek male header connector from Harwin Inc., designed for through-hole mounting. It features a 6-position configuration arranged in two rows with a 2.00mm pitch. The connector utilizes a horizontal orientation and incorporates the 101Lok locking mechanism for secure mating. Constructed with phosphor bronze contacts, it offers gold plating on the mating interface to ensure reliable electrical performance.

Headers, Male Pins Feature Summary

• Horizontal through-board design for compact board-to-board or cable applications
• 101Lok push-pull locking system ensures secure mechanical retention during operation
• Gold-plated phosphor bronze contacts provide durable and low-resistance connections

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal transmission
• Automotive electronics utilizing space-constrained layouts

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, orientation, and locking style. Ensure compatibility with the corresponding female receptacle within the Datamate J-Tek series. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a horizontal male header with a 2.00mm pitch is required. The 101Lok feature is critical for applications demanding high vibration resistance. Verify that the PCB footprint matches the specified dimensions for the 6-position variant. Consider thermal management requirements as the operating temperature range extends up to 121°C.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its high-density interconnect capabilities. The series supports various configurations including vertical, right-angle, and horizontal headers. The M80-5L10642MD specifically addresses needs for horizontal mounting solutions within this standardized ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 6-position count, 2.00mm pitch, horizontal orientation, and 101Lok locking mechanism. Cross-reference with other Harwin M80-5L variants for identical form factors. Generic replacements may lack the specific locking engagement profile required for secure assembly.
