M80-5L10822M5-02-333-00-000

Headers, Male Pins Overview

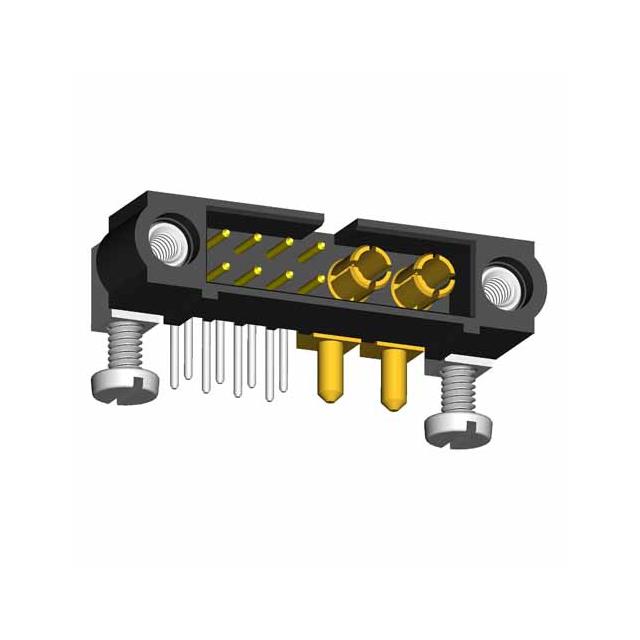

The M80-5L10822M5-02-333-00-000 is a Datamate Mix-Tek male header connector manufactured by Harwin. It features a 2-row configuration with 10 positions, combining 8 signal contacts and 2 power contacts. The connector utilizes a horizontal PC tail termination style with a 2.00 mm (0.079 inch) pin spacing. It is designed for board-to-board connections using jackscrews for secure mounting. The unit supports a voltage rating of 800V AC/DC and includes gold-plated brass contacts with a specified post finish thickness of 12.0 µin (0.30 µm).

Headers, Male Pins Feature Summary

• Integrates mixed technology capabilities within a single housing to accommodate both high-current power and standard signal lines simultaneously.
• Employs a horizontal PC tail design that facilitates direct through-hole soldering onto printed circuit boards.
• Incorporates mechanical locking via integrated jackscrews to ensure reliable connection stability under vibration.

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power distribution
• Automotive electronic modules needing robust board-to-board interconnects
• Telecommunications infrastructure equipment utilizing high-reliability connectors

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm the exact contact arrangement and mounting hardware specifications. Ensure compatibility with mating female connectors from the Datamate J-Tek or Mix-Tek series. Confirm that the selected variant meets the required current carrying capacity and environmental operating temperature ranges for the intended application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a compact solution is needed to route both power and signals through a single interface point. The horizontal orientation suits applications where vertical height constraints are critical. Verify that the PCB layout can accommodate the required pitch and that the jack-screw mounting holes align with the board design. Consider the 800V rating if higher voltage isolation is necessary compared to standard low-voltage headers.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate family, known for its high-density interconnect solutions. The Mix-Tek sub-series specifically addresses designs requiring combined power and signal transmission in a small footprint. It complements other Datamate variants like J-Tek by offering specialized mixed-contact configurations for complex electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek headers with identical row counts and pin spacing. Verify that any alternative maintains the same horizontal PC tail termination and jack-screw mounting style to ensure mechanical fit.
