M80-5L10822M7-01-333-01-333

Headers, Male Pins Overview

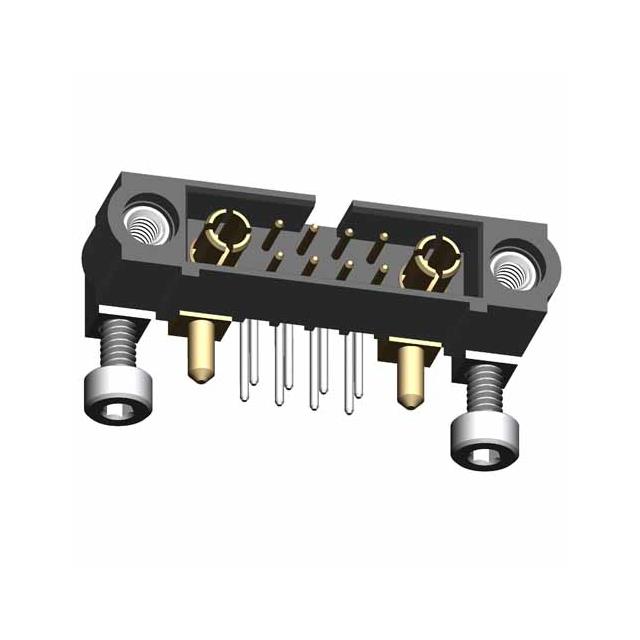

The Harwin M80-5L10822M7-01-333-01-333 is a Datamate J-Tek series power-to-board connector designed for mixed signal and power applications. It features a horizontal male configuration with a total of ten positions, arranged as eight signal pins and two dedicated power pins. The component utilizes through-hole solder pin termination for secure PCB mounting. Constructed with phosphor bronze contacts gold-plated for conductivity and polyphenylene sulfide (PPS) housing for thermal stability, it supports a current rating of 3 A per contact. This specific part number identifies the unique combination of contact count, orientation, and plating specifications within the Datamate ecosystem.

Headers, Male Pins Feature Summary

• Integrates mixed-signal architecture combining eight general-purpose signal contacts with two high-current power contacts in a single header assembly.
• Employs a horizontal male pin configuration to facilitate direct board-to-board or cable-to-board mating orientations.
• Utilizes gold-plated phosphor bronze contacts housed in Polyphenylene Sulfide (PPS) to ensure reliable electrical performance and thermal resistance.

Headers, Male Pins Applications

• Mixed signal and power distribution in industrial control modules
• Signal routing and power delivery in telecommunications equipment
• Interconnect solutions for automotive electronic control units

Headers, Male Pins Procurement Notes

Verify the exact suffix 'M7-01-333-01-333' against official Harwin documentation to confirm the specific contact arrangement and plating thickness. As this is a specialized part number within the Datamate family, ensure compatibility with corresponding female sockets before procurement. Cross-reference the RoHS status and lifecycle stage directly with the manufacturer, as availability may vary by region.

Headers, Male Pins Selection Notes

Select this component when a horizontal male header is required to combine standard signal lines with dedicated power paths on a single interface point. Ensure the mating socket matches the 8+2 position layout and that the PCB footprint accommodates the through-hole solder pin style. Confirm that the 3 A current rating and PPS material properties meet the environmental and electrical requirements of the target application.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek series, a modular interconnect system known for its compact size and high reliability. The J-Tek line specifically addresses applications requiring robust power handling alongside dense signal routing. The M80 prefix indicates the Datamate form factor, while the subsequent codes define the specific row count, contact type, and termination method.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Due to the precise nature of the Datamate coding system, generic equivalents may not match the specific 8+2 pin configuration or mechanical latch requirements. Consult Harwin technical support for validated cross-references if this specific suffix is unavailable.

Headers, Male Pins FAQ

What is the specific contact arrangement for this part number?

The M80-5L10822M7-01-333-01-333 features a mixed arrangement of eight signal positions and two power positions, totaling ten contacts.

What material is used for the connector housing?

The housing is constructed from Polyphenylene Sulfide (PPS), providing high thermal stability and mechanical strength.
