M80-5L10842MC

Headers, Male Pins Overview

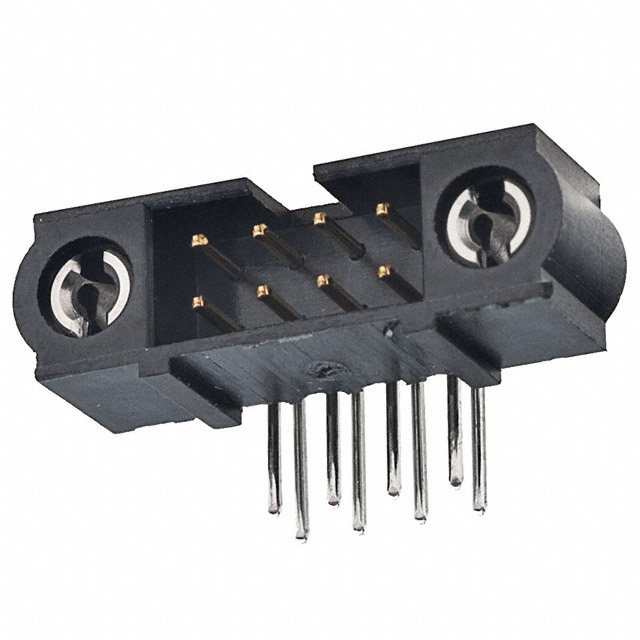

The M80-5L10842MC is a Datamate J-Tek male header connector featuring 8 positions arranged in a double-row configuration (4+4). It utilizes right-angle through-hole termination with 3mm PCB clearance. The contacts are designed for 24-28 AWG wire and feature gold plating. Rated at 2.2A and 120V, it incorporates 101Lok bayonet receptacles for secure latching.

Headers, Male Pins Feature Summary

• Incorporates 101Lok bayonet locking mechanism for positive retention
• Right-angle design facilitates horizontal board mounting
• Gold-plated contacts ensure reliable signal transmission

Headers, Male Pins Applications

• Industrial control systems requiring secure interconnects
• Test and measurement equipment interfaces
• Automotive electronics harness connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and material composition. Ensure compatibility with corresponding female receptacles within the Datamate J-Tek series. Confirm that the right-angle orientation matches the PCB layout requirements. Check RoHS compliance status against current manufacturing standards.

Headers, Male Pins Selection Notes

Select this component when right-angle mounting is required for space-constrained designs. The 4+4 pin configuration supports moderate current applications up to 2.2A. Ensure the mating receptacle utilizes the compatible 101Lok bayonet system for proper mechanical engagement.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for high-reliability board-to-board and cable-to-board connections. The series offers various configurations including straight and right-angle headers with different locking options.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 8-position double-row layouts and right-angle termination. Verify that alternative parts support the same 24-28 AWG wire gauge and utilize matching bayonet locking mechanisms.
